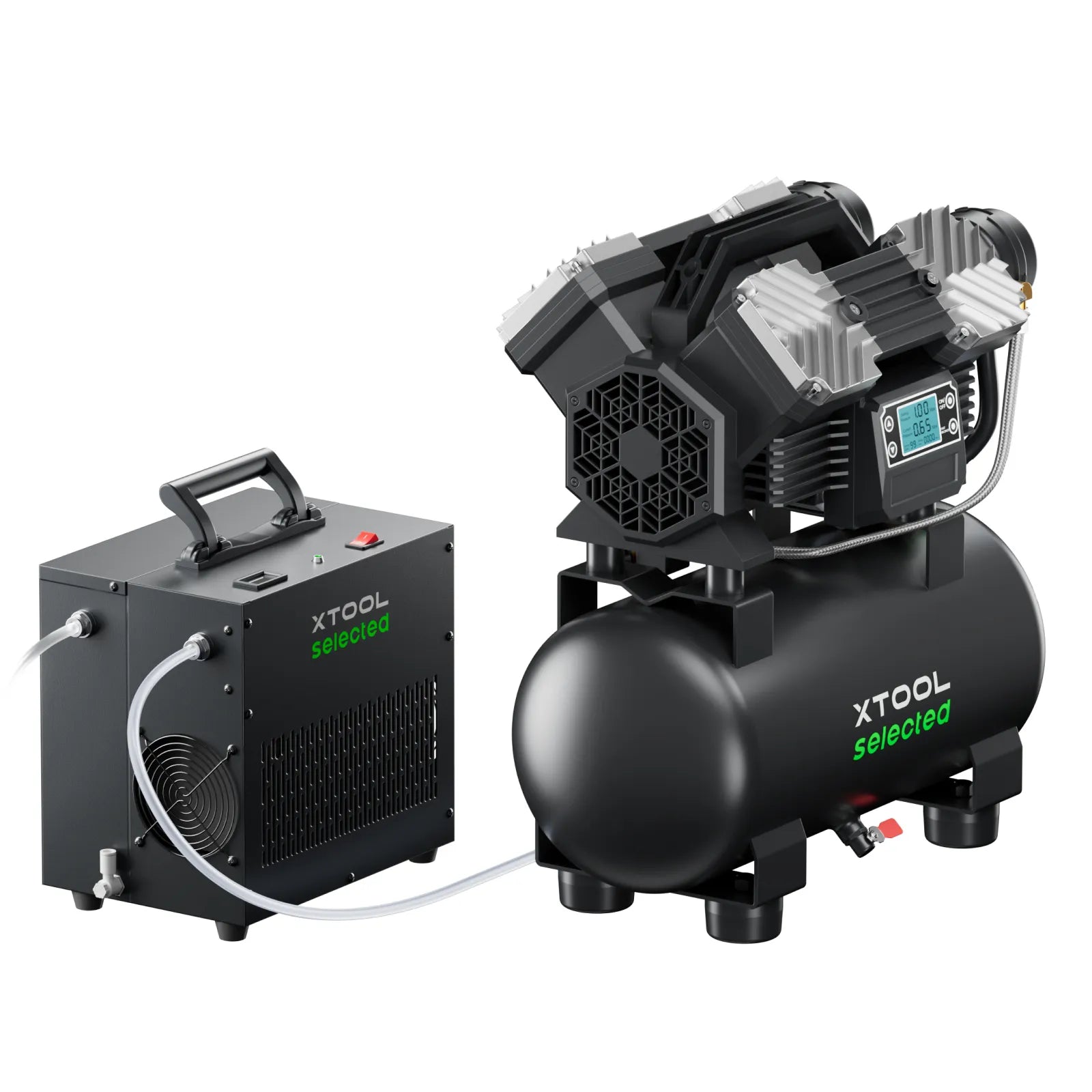

xTool Selected Air Compressor & Air Dryer Combo for MetalFab

Complete your xTool MetalFab setup with the clean, dry, high-pressure air supply needed for dependable CNC metal cutting. The xTool Selected Air Compressor & Air Dryer Combo is engineered specifically for the xTool MetalFab system, providing a convenient and cost-effective alternative to relying exclusively on bottled nitrogen or argon for many cutting applications.

This is not simply an optional shop compressor. When compressed air is used with the MetalFab, an air dryer is essential. Ordinary compressed air can contain moisture, oil residue, dust, and other contaminants. If those contaminants enter the MetalFab’s air lines and processing head, they can reduce cutting quality, contaminate internal components, and potentially damage the equipment.

The included xTool Air Dryer conditions the compressed air before it reaches your MetalFab. Its heat-exchange system rapidly cools the air, while a three-stage filtration system removes moisture, oil, and fine particles. This helps provide the stable, clean airflow needed for consistent cuts, reduced dross, and better protection for your investment.

A Complete Compressed-Air Solution for MetalFab

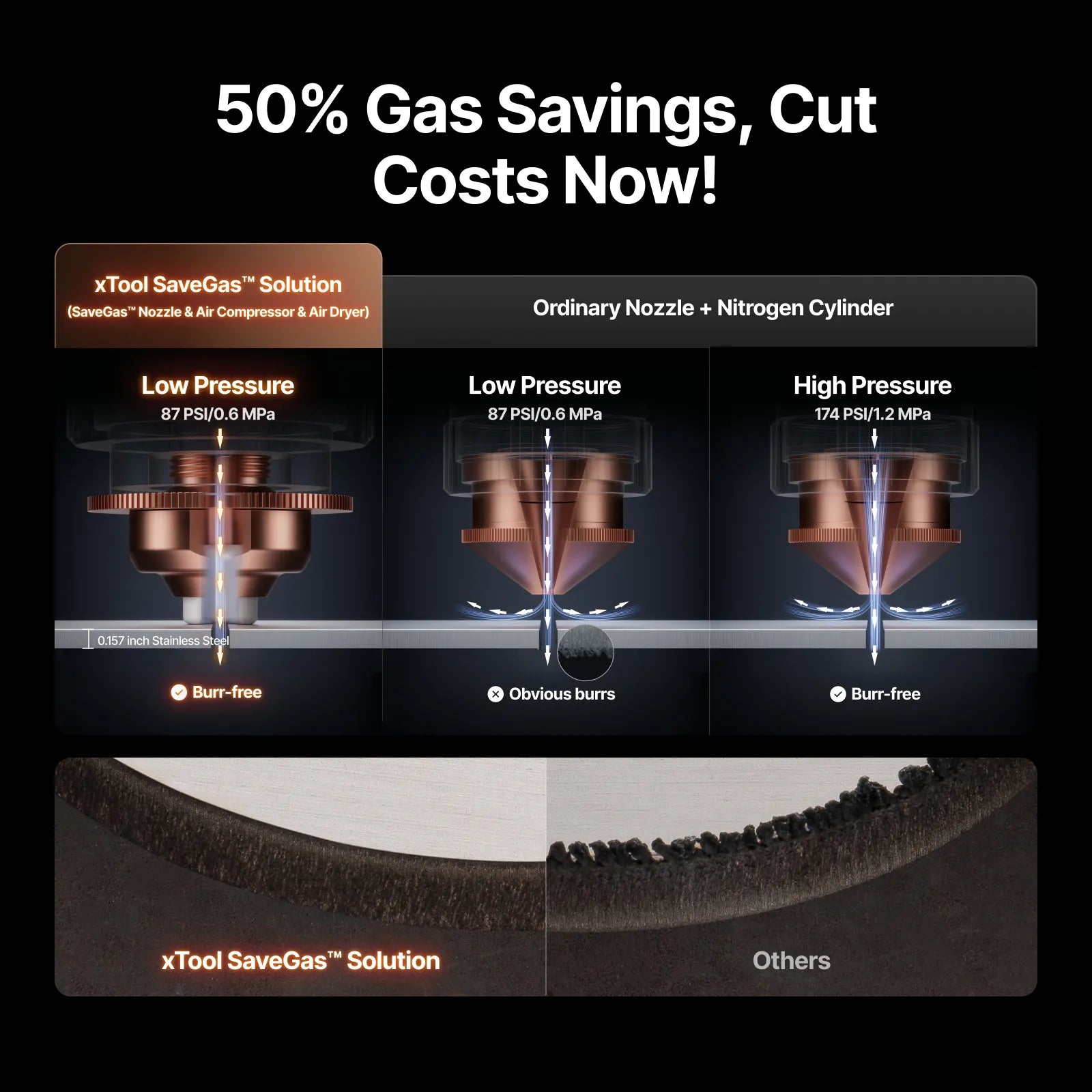

Paired with the xTool SaveGas™ nozzle, the compressor-and-dryer system can provide continuous cutting pressure above 87 PSI. According to xTool, this setup can produce burr-free cuts in materials such as:

• Stainless steel up to 4 mm

• Aluminum up to 4 mm

• Brass up to 3 mm

Actual cutting performance can vary based on the MetalFab model, nozzle selection, material composition, cutting parameters, focus, and surface condition.

The compressor automatically replenishes the air supply as pressure drops, helping maintain consistent operating pressure throughout the cutting process. A 20-liter tank provides an air reserve, while selectable FAST and SILENCE operating modes allow you to prioritize maximum output or reduced operating speed. For MetalFab cutting, xTool recommends operating the compressor in FAST mode and setting the pressure to 1.0 MPa.

Why the Air Dryer Is Necessary

The xTool compressor is designed to operate together with the air dryer and should not be connected directly to the MetalFab without proper air treatment. The dryer helps:

• Remove up to 99% of moisture from the compressed air

• Filter up to 99.99% of oil and dust

• Protect the MetalFab processing head and internal air lines

• Support cleaner, more consistent cutting results

• Reduce the risk of contamination-related performance problems

• Create a convenient in-shop air supply without continually replacing gas cylinders

For this reason, xTool offers the compressor as part of the complete compressor-and-dryer combination rather than as a stand-alone MetalFab accessory.

Air Compressor Specifications

• Maximum pressure: 145 PSI

• Airflow: 12.4 CFM

• Operating pressure range: 0.3–1.0 MPa

• Recommended MetalFab setting: 1.0 MPa

• Tank capacity: 20 liters

• Rated power: 2,200 watts

• Operating voltage: 200–240 VAC

• Net weight: approximately 35.3 lb.

• Dimensions: approximately 18.1" W × 20.9" H × 10.6" D

• Operating noise: approximately 85 dB while generating air

• FAST and SILENCE operating modes

• Automatic stop and restart based on tank pressure

Air Dryer Specifications

• Three-stage precision filtration

• Rated airflow: 400 liters per minute

• Operating pressure: 1.0 MPa

• Rated power: approximately 380–450 watts

• U.S. operating voltage: 100–120 VAC

• Air inlet temperature: 113°F or lower

• Net weight: approximately 26.7 lb.

• Dimensions: approximately 15.8" W × 14" H × 8.9" D

• Automatic moisture drainage

• M10 quick-connect fitting for 10 mm air tubing

Important Electrical Requirements

The compressor and air dryer require separate electrical connections:

• Air compressor: 200–240 VAC, approximately 2,200 watts

• Air dryer: 100–120 VAC for the U.S. version, approximately 380–450 watts

The compressor should be installed on an appropriately rated electrical circuit. Consult a qualified electrician to confirm that your shop’s wiring, outlets, and circuit protection meet all applicable electrical requirements.

Compatibility

This compressor-and-dryer combination is designed specifically for use with the xTool MetalFab system. It is not intended to serve as a general-purpose air-assist unit for xTool CO₂, diode, UV, or fiber engraving machines.

For anyone purchasing the MetalFab CNC Cutter—or adding CNC cutting capabilities to an existing MetalFab Laser Welder—this combination provides the clean, dry, consistent compressed-air supply required for a properly equipped cutting setup.

Protect your MetalFab, improve your cutting consistency, and eliminate the inconvenience of continually replacing compressed-gas cylinders with the xTool Selected Air Compressor & Air Dryer Combo.
