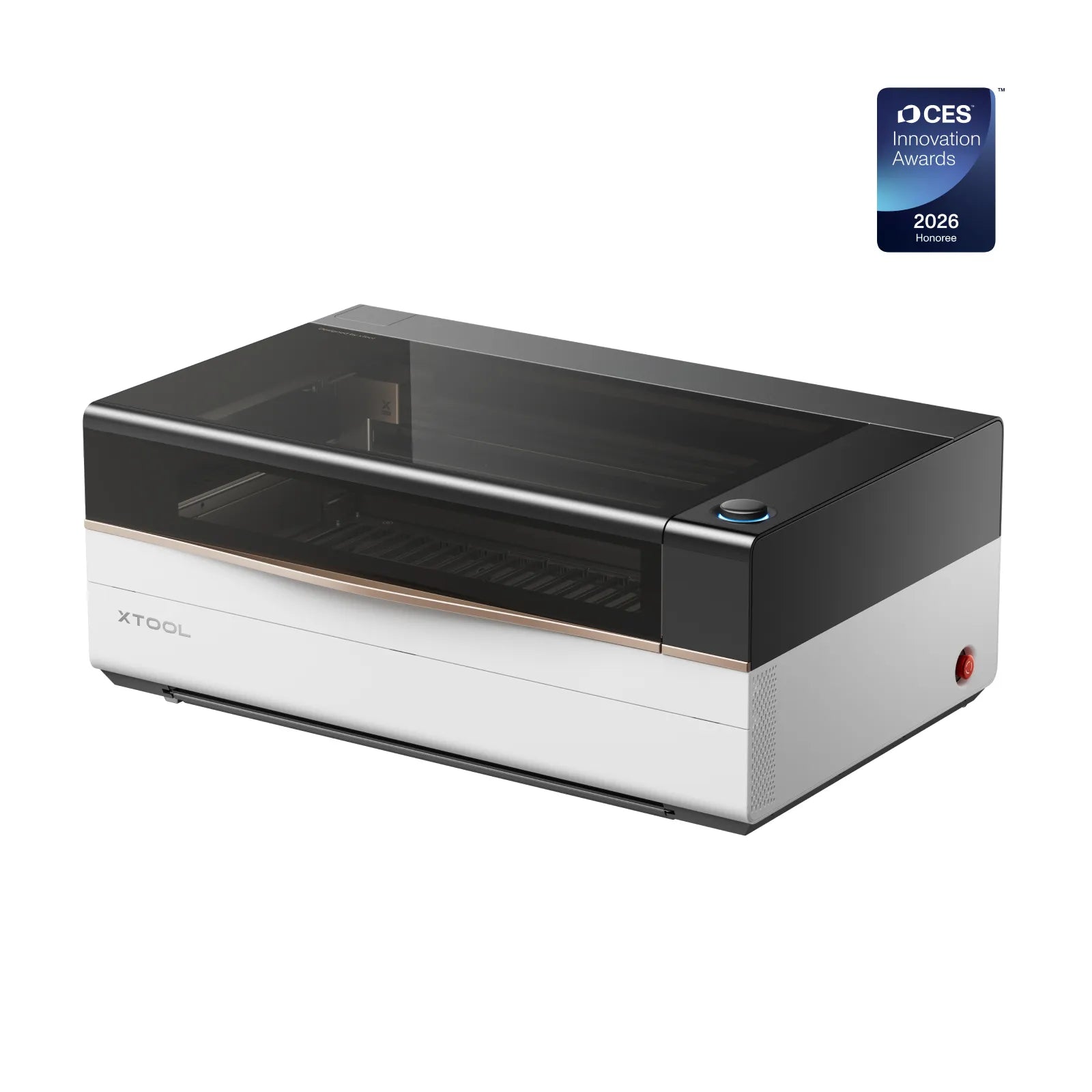

xTool P3 80W CO₂ Laser Cutter and Engraver

Professional Power, Intelligent Automation and a Generous 36" × 18" Workspace

The xTool P3 is a flagship 80W CO₂ laser cutter and engraver built for small businesses, production shops, schools and serious makers who need more power, more workspace and greater efficiency. With a spacious 36" × 18" processing area, high-speed motion system, motorized lifting platform and intelligent camera-assisted workflow, the P3 is designed to take projects from setup to finished production with less manual work.

Its powerful 80W CO₂ laser can cut thick wood and acrylic while producing detailed engraving on a broad range of materials. Because CO₂ laser light is readily absorbed by clear acrylic, the P3 can cut and engrave transparent, colored, mirrored and opaque acrylic—materials that standard diode lasers often cannot process effectively.

Whether you are producing custom signs, layered wall art, personalized gifts, retail displays or batch orders, the xTool P3 gives you the power and capacity to grow.

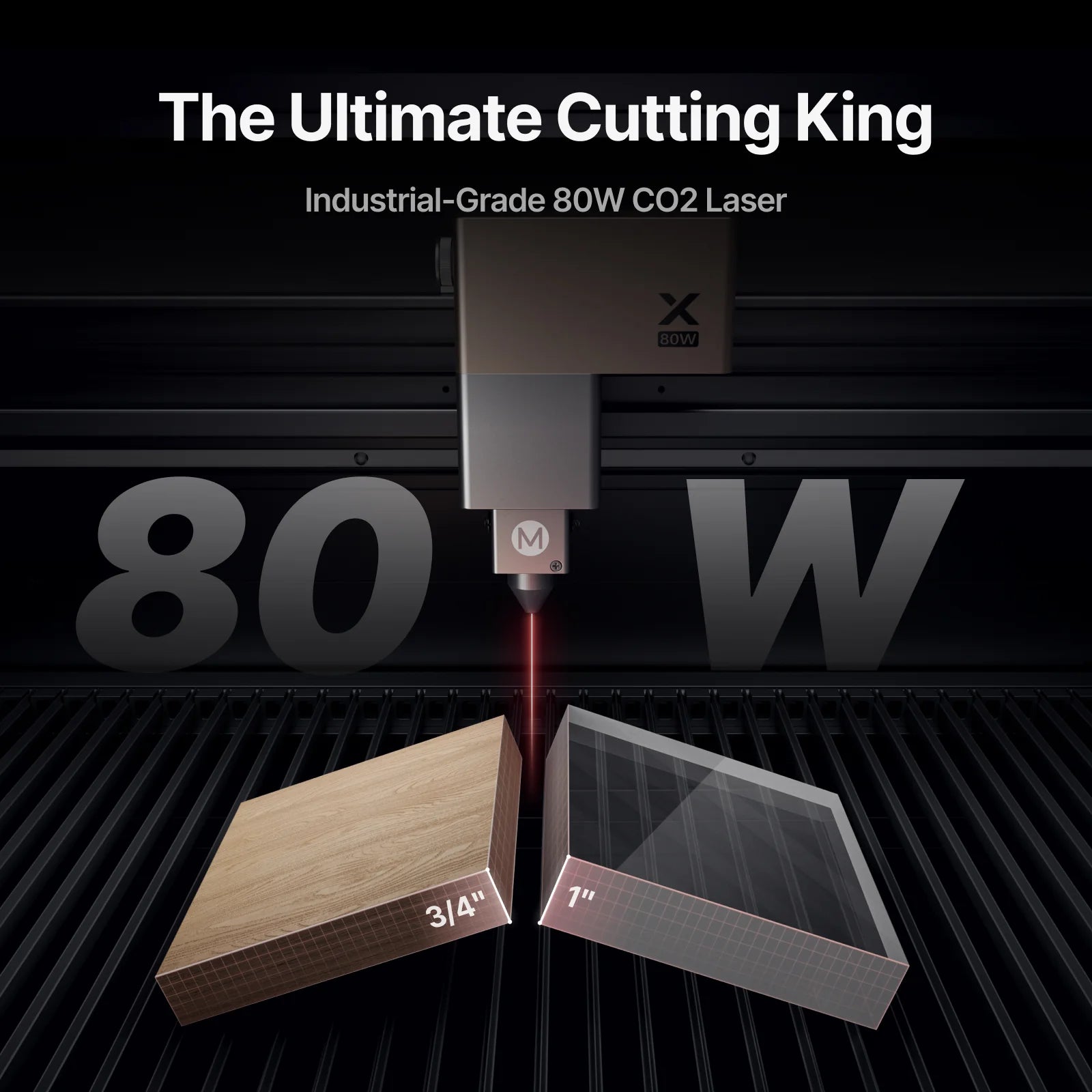

Powerful 80W CO₂ Laser

The P3’s 80W CO₂ laser delivers faster cutting, cleaner edges and greater material capacity than lower-powered desktop laser systems. It can cut wood up to 20 mm thick and transparent acrylic up to 25 mm thick under appropriate conditions. Actual cutting performance will vary based on the type and density of the material, focus lens, machine settings, material flatness and other operating conditions.

The P3 is especially well suited for businesses that work with:

• Wood and plywood

• Solid hardwood

• MDF

• Transparent and colored acrylic

• Leather

• Paper and cardstock

• Fabric and felt

• Rubber made specifically for laser engraving

• Coated glass

• Ceramic and stone

• Coated or anodized metal

The standard CO₂ laser does not cut bare metal. An optional 5W infrared module is available separately for engraving selected metals and plastics, expanding the P3’s customization capabilities.

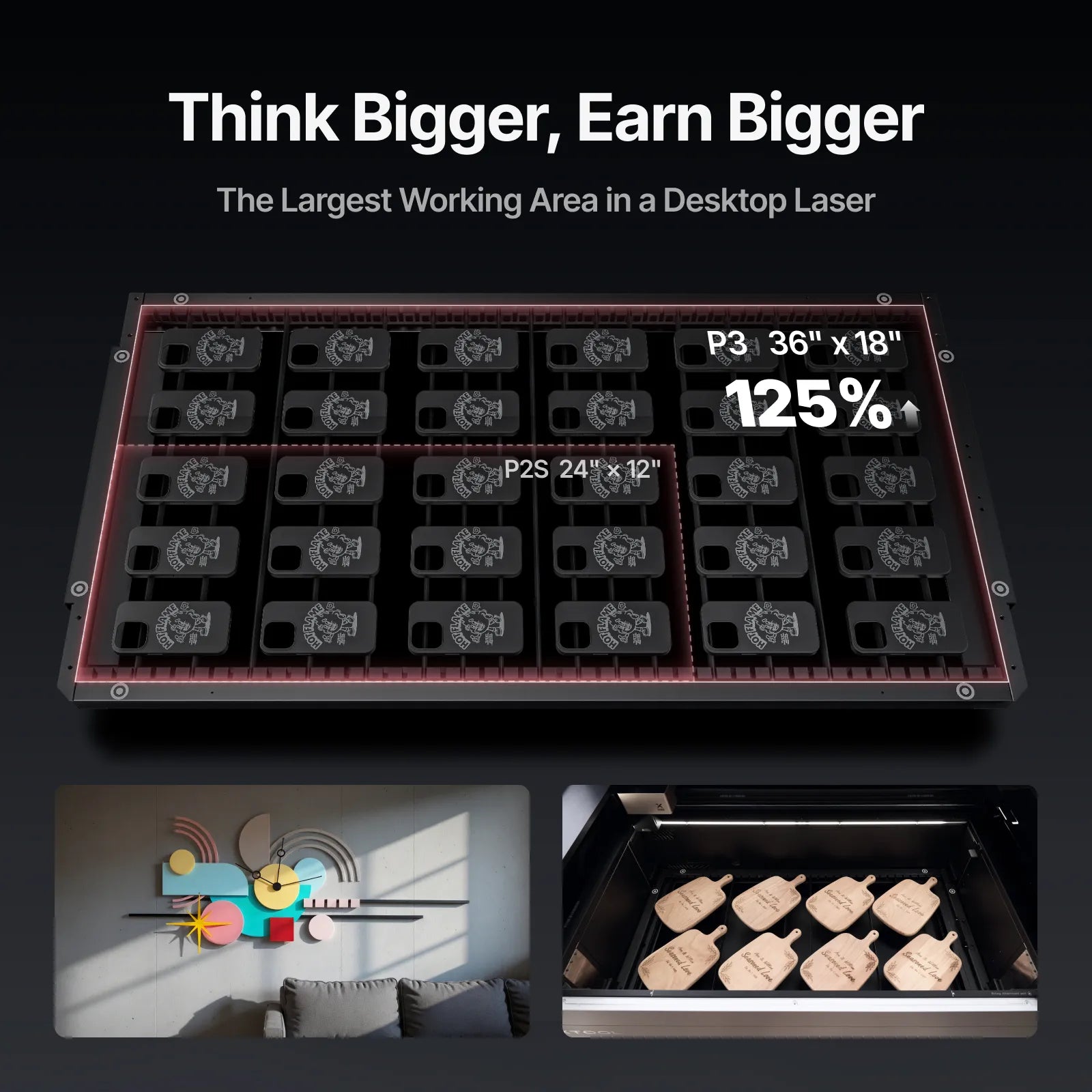

Large 36" × 18" Processing Area

The P3 provides a maximum standard processing area of approximately 36.02" × 18.03"—915 × 458 mm. This generous workspace makes it possible to create larger signs, cut multiple parts at once and arrange more products on the bed for efficient batch production.

The larger work area is ideal for:

• Business and storefront signs

• Oversized home décor

• Layered wall art

• Cabinet and furniture components

• Large acrylic displays

• Multiple ornaments, tags or coasters in one job

• Production runs of personalized products

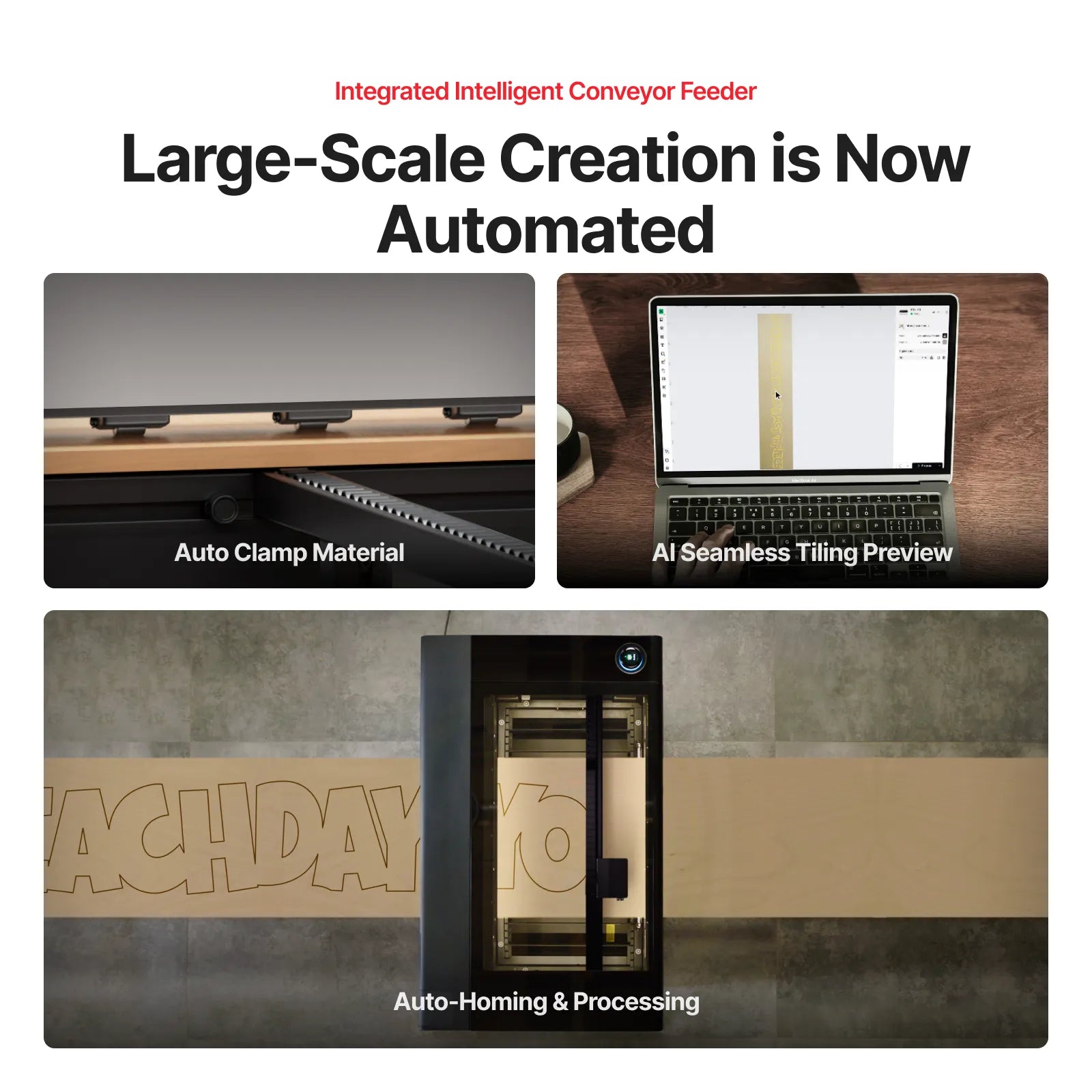

For projects longer than the standard bed, the optional xTool Intelligent Conveyor Feeder allows the P3 to process long materials in sections, making it useful for long signs, decorative panels and production work.

High-Speed Production

The P3 reaches maximum processing speeds of up to 1,200 mm/s for vector processing and up to 400 mm/s for bitmap processing. Its combination of speed, power and large bed size allows businesses to complete individual projects faster and place more products into each production run.

This increased productivity can be especially valuable for shops producing:

• Personalized gifts

• Event and wedding products

• Branded merchandise

• Wholesale orders

• Seasonal decorations

• Craft-show inventory

• Custom signage

• Repetitive production parts

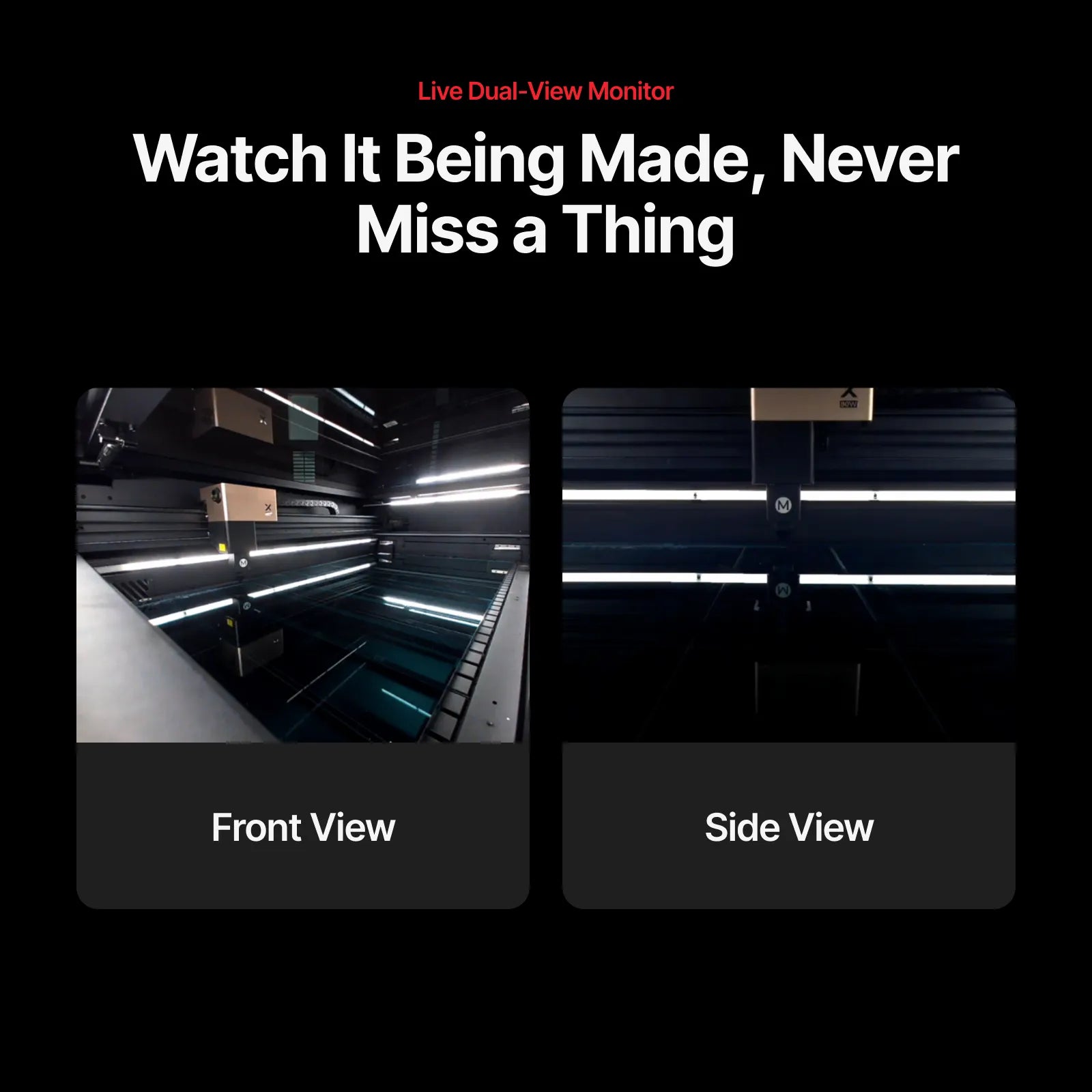

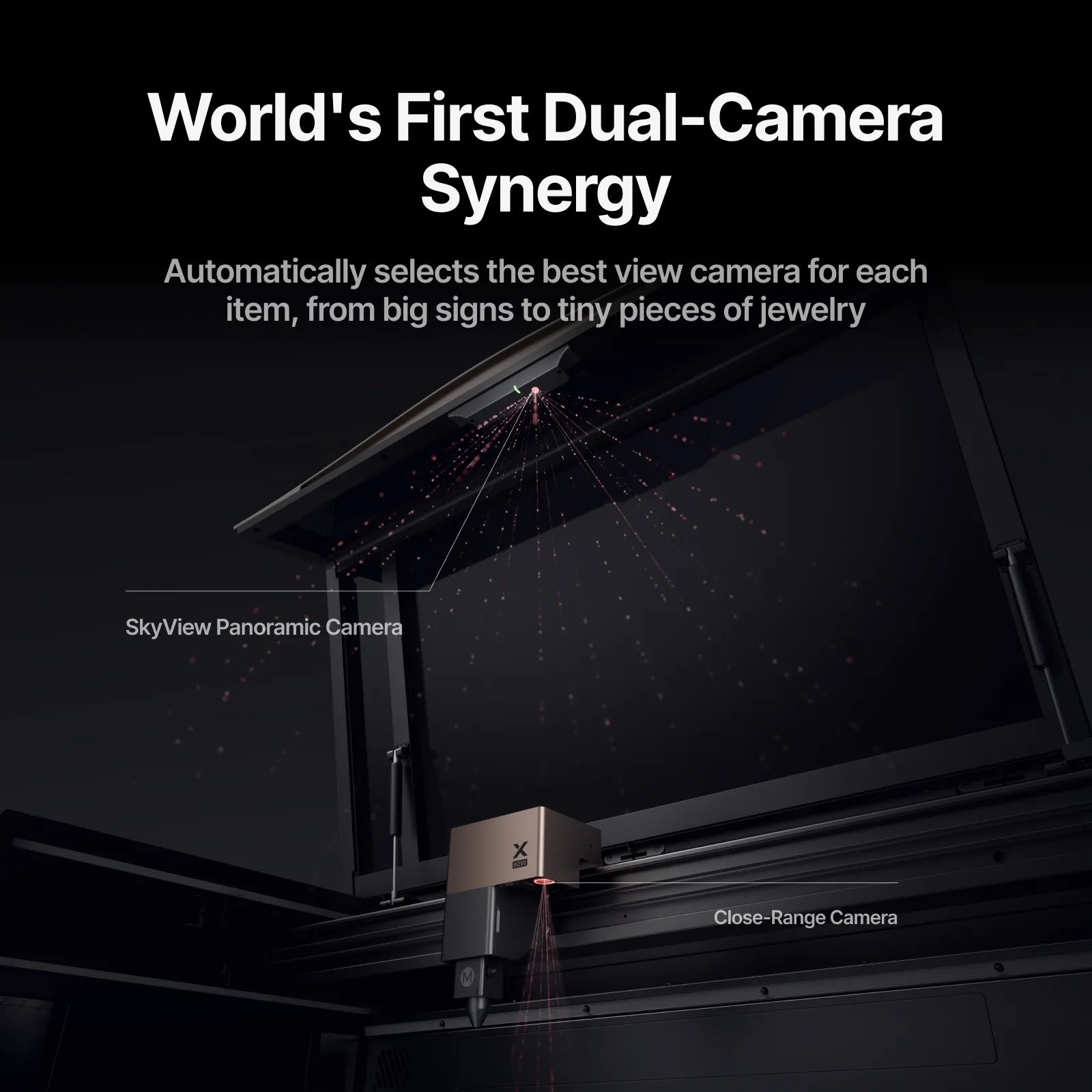

Intelligent Camera and Positioning System

The xTool P3 incorporates a multi-camera system to help simplify material placement, design positioning and machine monitoring. Its camera system includes a 16-megapixel distance-view camera and a 5-megapixel close-view camera.

Users can view the material inside the machine, position artwork over the captured image and preview the layout before processing. This can make it easier to align designs on pre-cut pieces, use irregularly shaped material and reduce waste when working with valuable stock.

The P3’s automated workflow can assist with:

• Capturing the work area

• Identifying compatible materials

• Measuring material placement

• Automatic focusing

• Positioning artwork

• Monitoring the project during operation

• Setting up repeated or batch jobs

Material identification and automated settings should always be reviewed before starting a project, especially when using materials from different manufacturers.

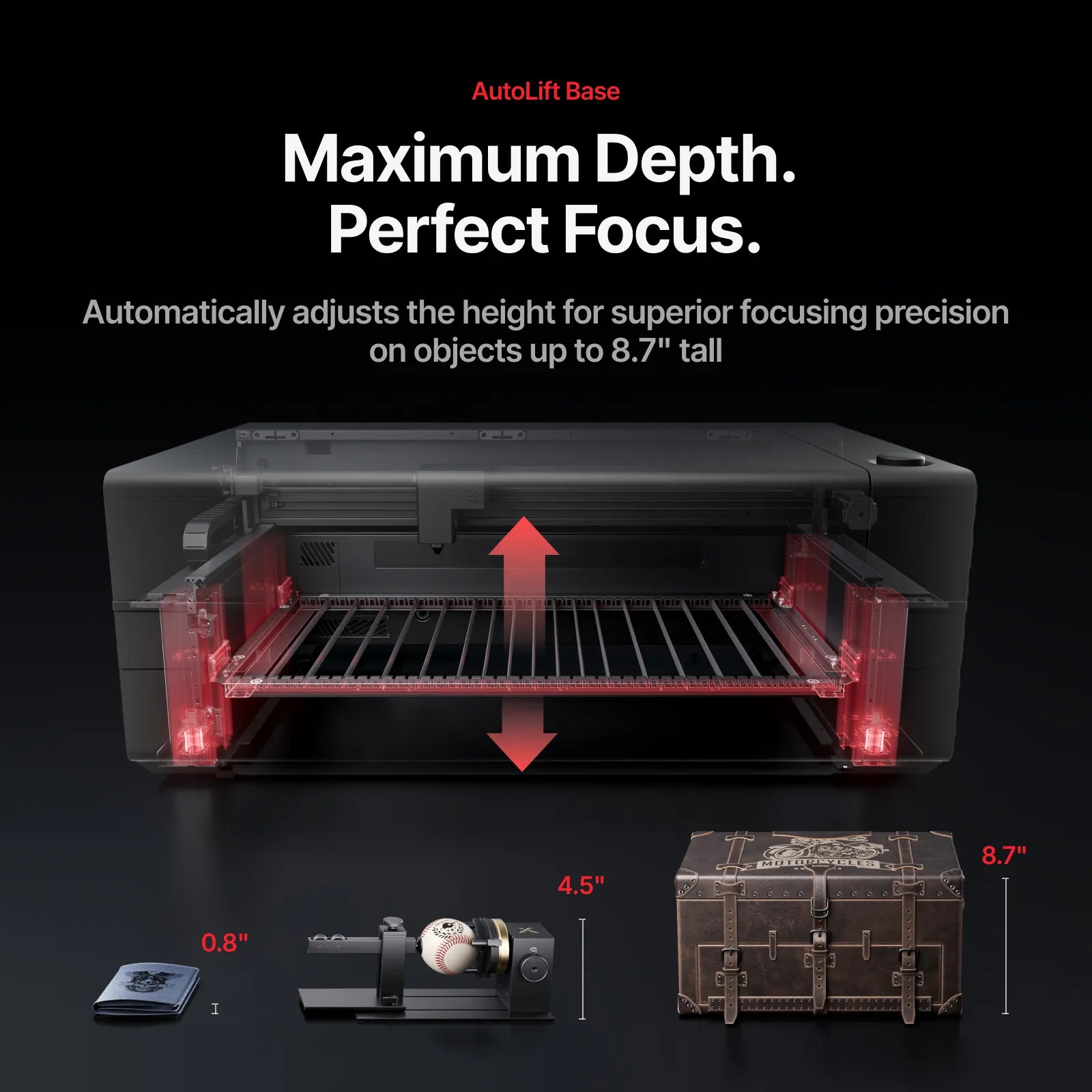

Built-In Motorized AutoLift Base

Unlike systems that require a separate manual riser base, the P3 includes a built-in motorized lifting platform. The machine supports material heights up to approximately 8.66"—220 mm—in manual mode and up to approximately 7.08"—180 mm—in automatic mode.

This additional vertical capacity makes it possible to engrave thicker and taller objects, including:

• Wooden boxes

• Presentation cases

• Deep trays

• Cutting boards

• Assembled products

• Shadow boxes

• Small furniture components

• Tumblers and drinkware when used with a compatible rotary attachment

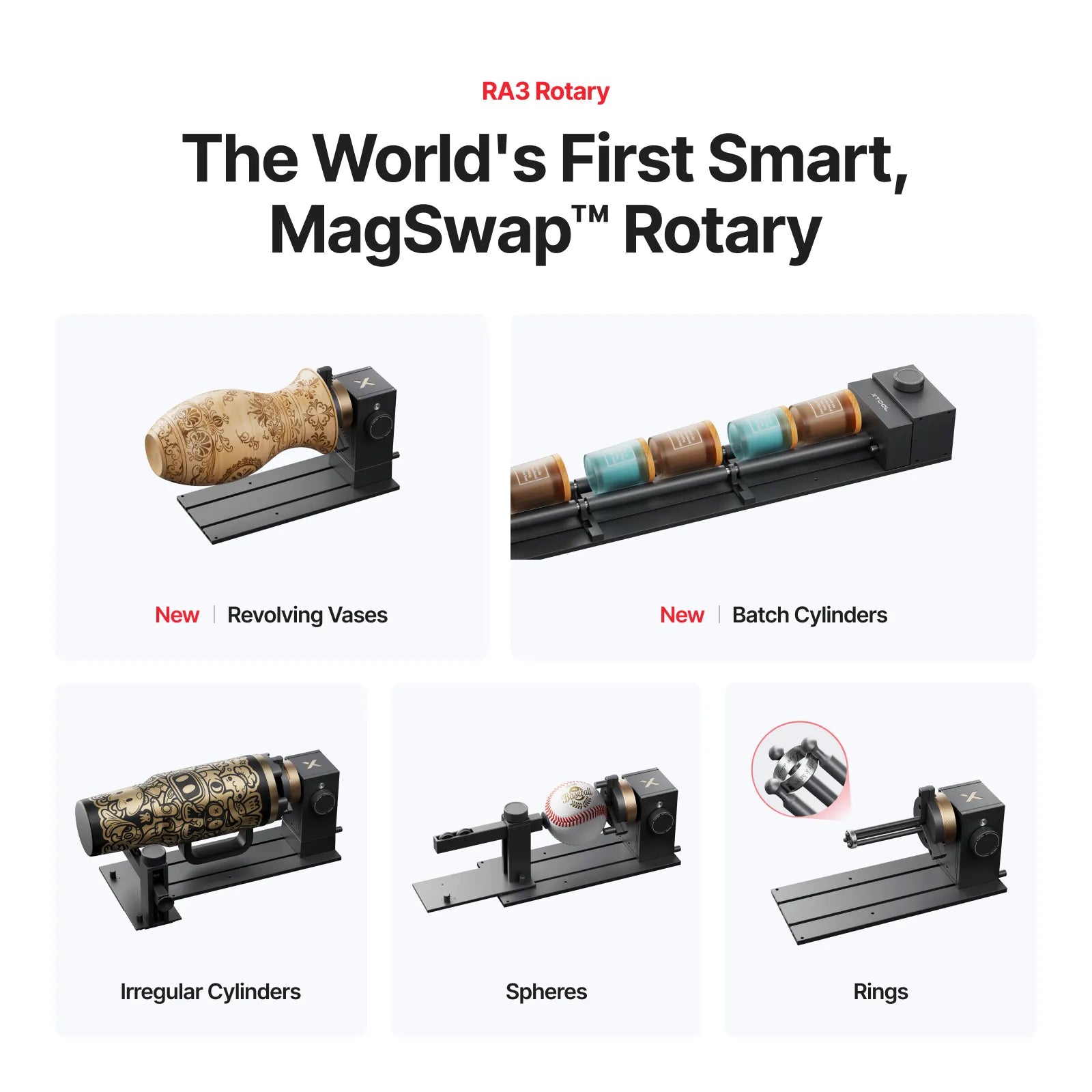

Curved-Surface and Rotary Engraving

The P3 can process compatible curved surfaces and can be paired with an optional xTool rotary attachment for cylindrical, spherical and ring-shaped products.

Depending on the rotary configuration, users can personalize:

• Tumblers

• Mugs

• Glassware

• Bottles

• Wooden rolling pins

• Flashlights

• Cylindrical containers

• Ornaments

• Round keepsake boxes

• Rings and bracelets

Always verify the diameter, material and rotary configuration before processing.

Materials the xTool P3 Can Cut

Wood

The P3 can cut many common wood products, including:

• Basswood

• Plywood

• Birch plywood

• Poplar

• Maple

• Cherry

• Walnut

• Oak

• MDF

• Veneer

• Balsa wood

• Cork

Wood thickness and cutting quality vary significantly by species, density, glue content, moisture and internal voids. Dense hardwoods and some plywood products may require slower speeds or multiple passes.

Acrylic

A major advantage of the P3’s CO₂ laser is its ability to cut and engrave clear acrylic as well as:

• Transparent acrylic

• Opaque acrylic

• Cast acrylic

• Extruded acrylic

• Mirrored acrylic

• Fluorescent acrylic

• Frosted acrylic

• Two-color engraving acrylic

The P3 can cut transparent acrylic up to 25 mm thick under suitable conditions. Acrylic is an excellent material for professional signage, illuminated displays, awards, decorative panels and dimensional lettering.

Leather

The P3 can cut and engrave many natural and laser-safe synthetic leathers for products such as:

• Hat patches

• Bag tags

• Keychains

• Wallet pieces

• Bracelets

• Journal covers

• Earrings

• Coasters

• Luggage tags

Avoid leather or synthetic leather containing PVC or other chlorine-based compounds.

Paper, Cardstock and Fabric

The P3 can precisely cut lightweight materials for:

• Invitations

• Greeting cards

• Paper flowers

• Stencils

• Scrapbook elements

• Packaging prototypes

• Fabric appliqué

• Felt ornaments

• Quilt templates

• Decorative overlays

Materials the xTool P3 Can Engrave

The standard 80W CO₂ laser can engrave or mark many materials, including:

• Wood

• Plywood

• MDF

• Acrylic

• Leather

• Paper

• Cardboard

• Cork

• Rubber made for laser engraving

• Fabric

• Felt

• Glass

• Ceramic

• Slate

• Marble

• Stone

• Anodized aluminum

• Painted metal

• Powder-coated metal

• Laser-marking coatings applied to metal

Bare metals generally require a laser-marking compound or the optional 5W infrared module. The ability to mark a particular metal will depend on its alloy, finish and surface treatment.

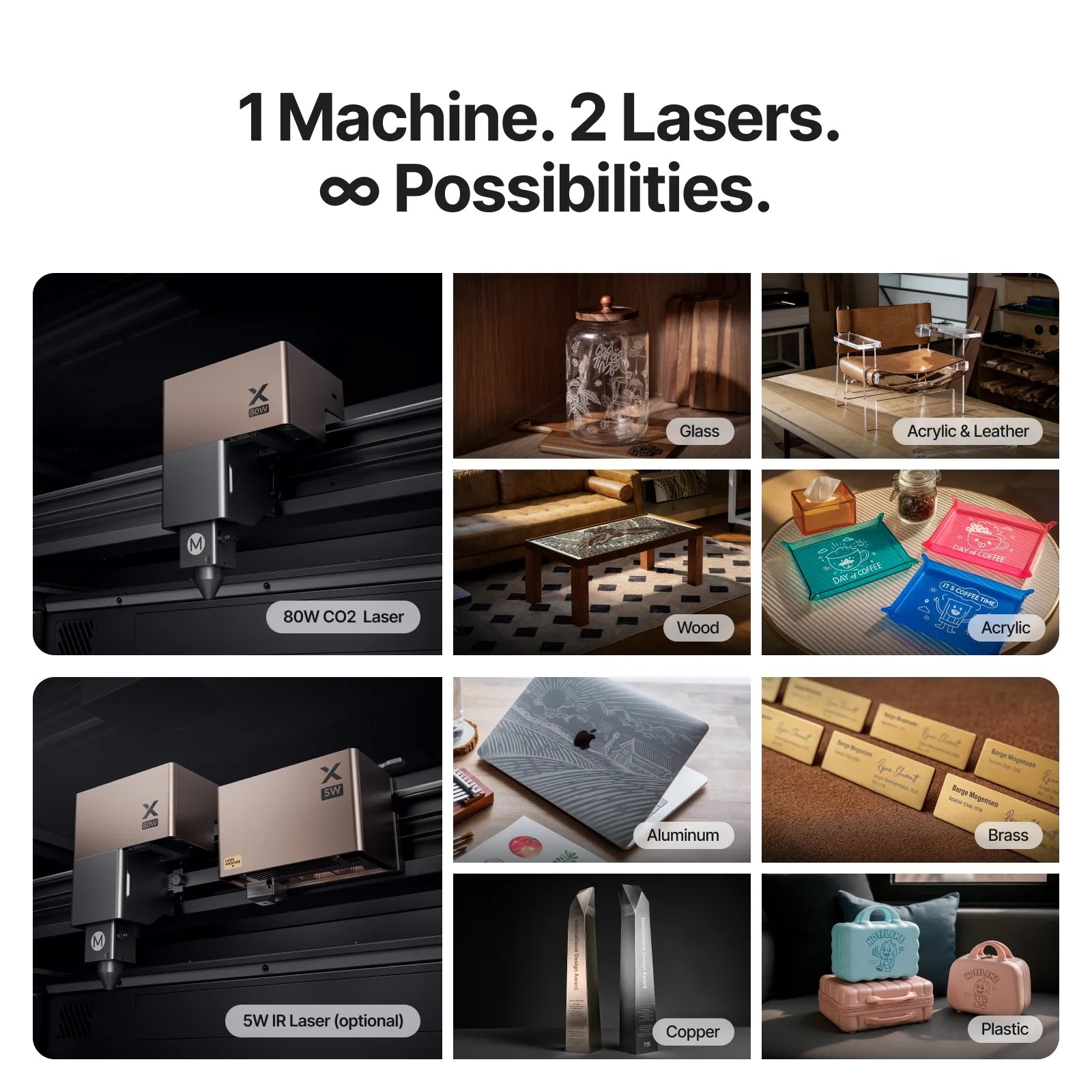

Optional 5W Infrared Module

The optional 5W infrared module adds the ability to engrave selected bare metals and certain plastics. It does not replace the 80W CO₂ laser for wood or acrylic cutting, and it is not designed for cutting metal.

Depending on the material, the infrared module may be used to mark:

• Stainless steel

• Aluminum

• Brass

• Copper

• Gold

• Silver

• Titanium

• Selected plastics

• Coated and anodized metals

• Small jewelry pieces

• Metal business cards

• Identification plates

• Tools and hardware

Results vary by material composition, surface finish and settings. The 5W infrared module is sold separately unless specifically included in the selected bundle.

Project Ideas for the xTool P3

Signs and Business Displays

Create professional signage such as:

• Storefront and reception signs

• Dimensional acrylic lettering

• Layered wood signs

• LED edge-lit acrylic signs

• Directional signs

• Menu boards

• Office nameplates

• House-number signs

• Wedding signs

• Trade-show displays

• QR-code signs

• Retail product displays

Home Décor

Produce decorative items including:

• Layered wall art

• Family-name signs

• Maps and lake signs

• Clocks

• Mirrors with engraved accents

• Decorative panels

• Door hangers

• Shelf décor

• Shadow boxes

• Lanterns

• Seasonal decorations

• Architectural models

Personalized Gifts

Offer customized products such as:

• Cutting boards

• Keepsake boxes

• Memory boxes

• Wedding gifts

• Anniversary plaques

• Baby-name signs

• Pet memorials

• Photo engravings

• Recipe boards

• Personalized ornaments

• Coasters

• Serving trays

• Jewelry boxes

Acrylic Products

Use clear, colored or mirrored acrylic to make:

• Awards and trophies

• Cake toppers

• Table numbers

• LED signs

• Display stands

• Product risers

• Jewelry displays

• Keychains

• Bag tags

• Earrings

• Business signs

• Menu holders

• Desk accessories

Products for Events and Weddings

Create coordinated event décor, including:

• Invitations

• Place cards

• Seating charts

• Table numbers

• Guest-book signs

• Cake toppers

• Favor tags

• Drink stirrers

• Photo-booth props

• Centerpiece components

• Personalized gifts

• Directional signage

Woodworking and Furniture Components

The P3 can also complement a woodworking shop by producing:

• Inlays

• Marquetry components

• Veneer designs

• Drawer dividers

• Box inserts

• Templates

• Jigs

• Decorative furniture overlays

• Cabinet labels

• Small drawer components

• Model parts

• Engraved branding plates

Small-Business Production

The P3 is well suited for producing inventory and custom orders such as:

• Branded packaging

• Product tags

• Retail displays

• Promotional items

• Corporate gifts

• Personalized drinkware

• Leather patches

• Rubber stamps

• Branded tools

• Serial-number plates

• Craft-show merchandise

• Wholesale product runs

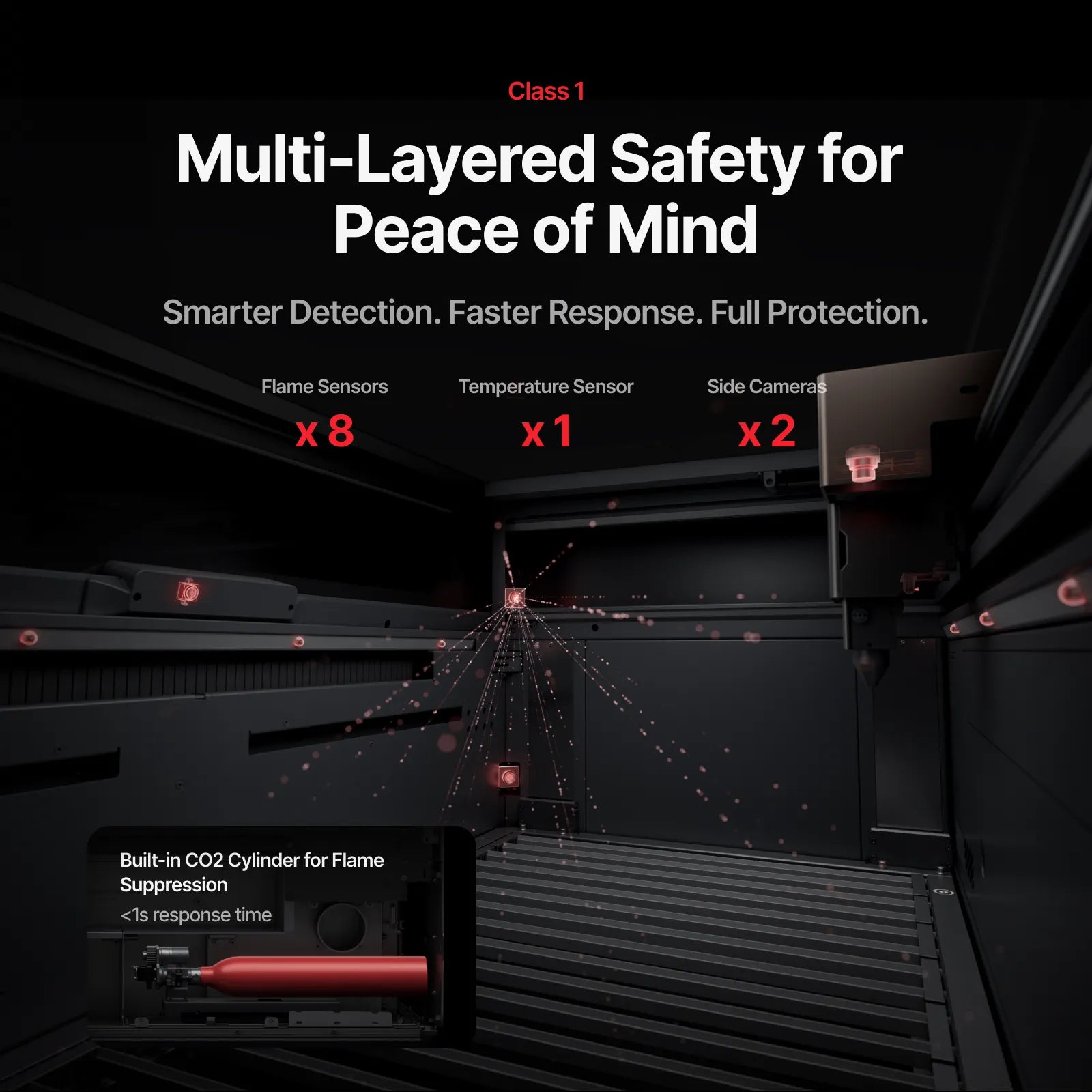

Safety and Enclosed Operation

The xTool P3 is classified as a Class 1 laser machine when operated in its standard enclosed configuration. Its enclosure, monitoring system and multi-layered safety features are designed to provide a more controlled working environment.

When the optional conveyor feeder is installed and the machine openings are exposed, the system is classified as a Class 4 laser and requires additional precautions, workspace controls and appropriate protective equipment.

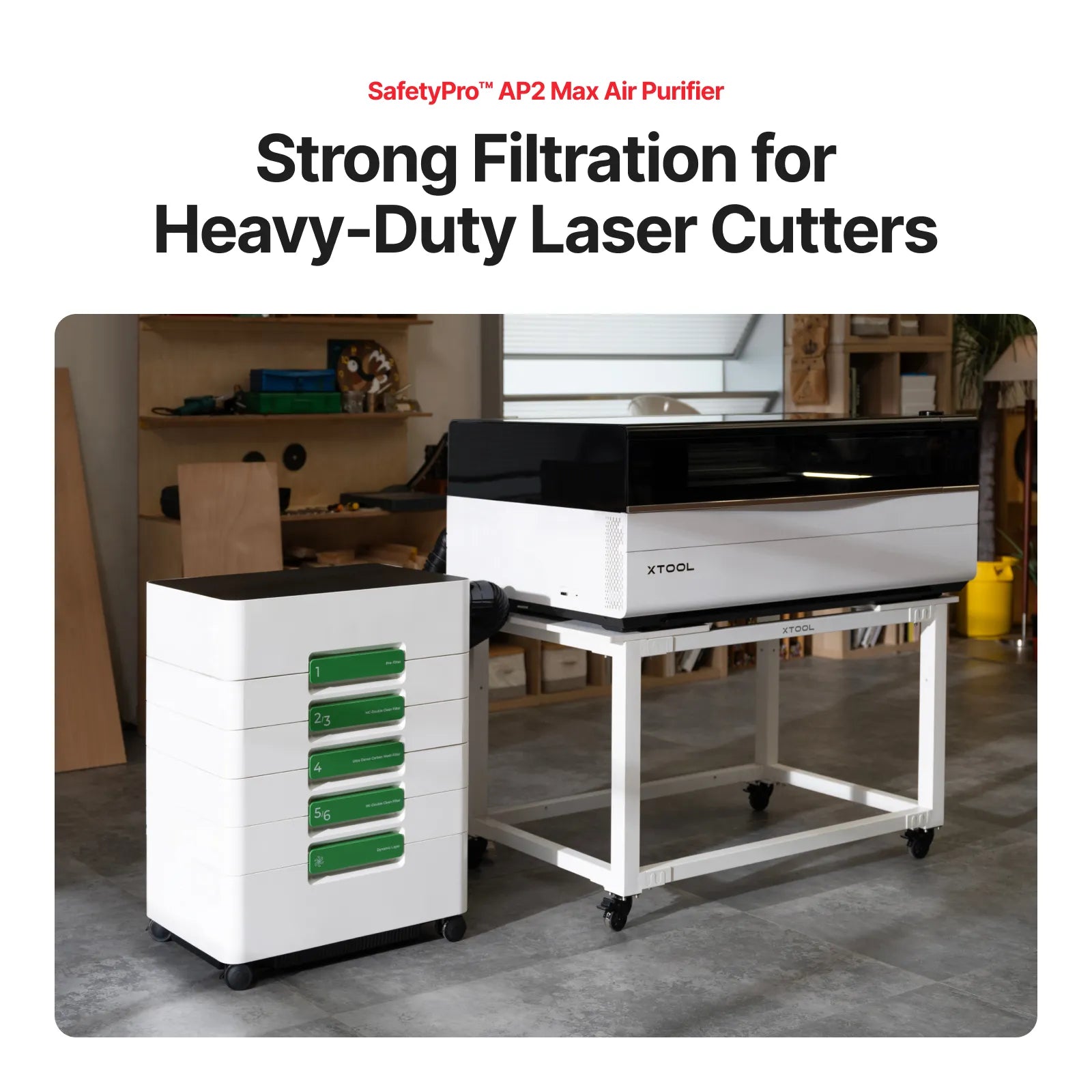

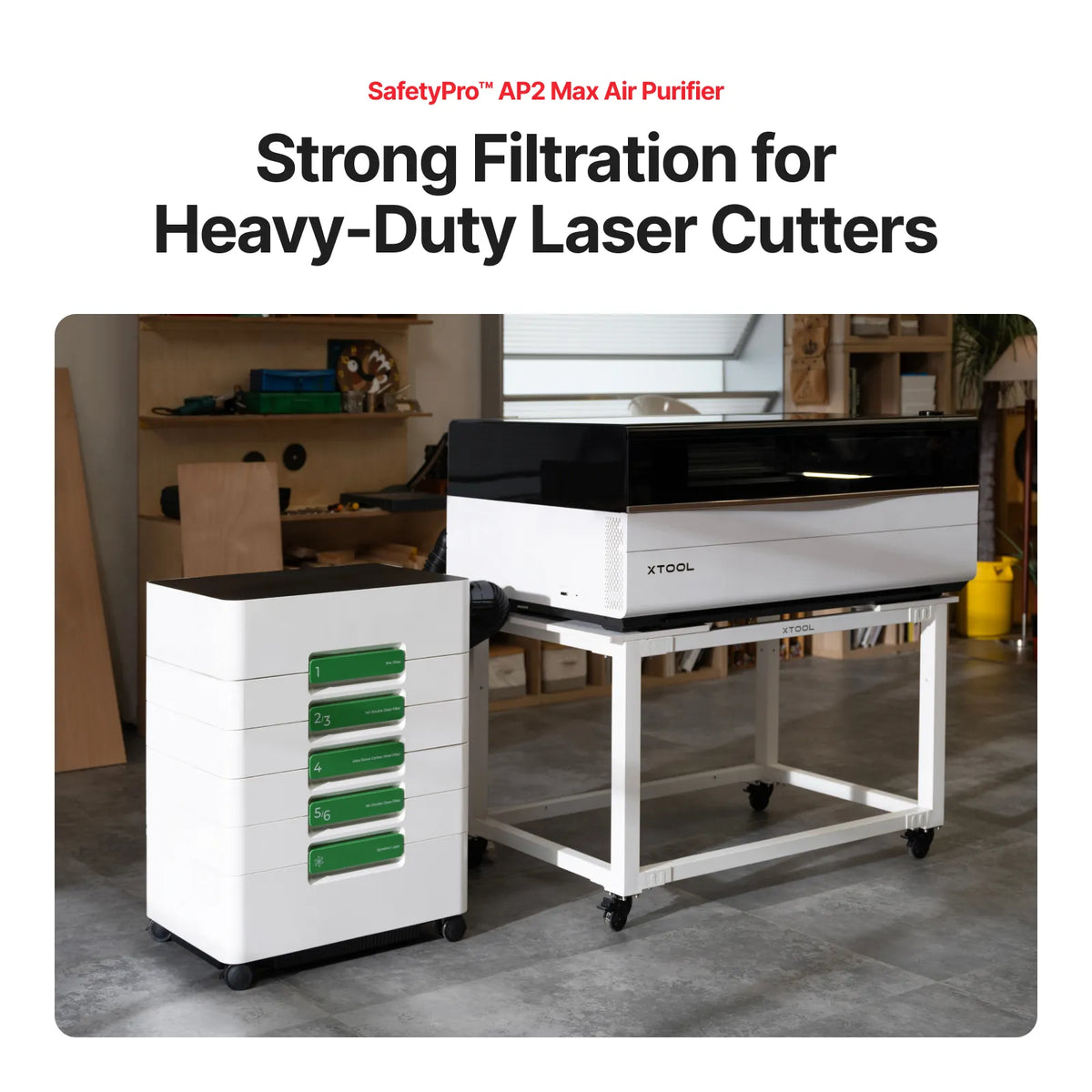

All laser processing creates smoke, fumes or airborne particles. Proper exhaust or filtration is required, and users must confirm that every material is safe for laser processing before placing it in the machine.

Never process PVC, vinyl, PTFE, materials containing chlorine or fluorine, unknown plastics, fiberglass, carbon fiber with resin, or any material that may release corrosive or toxic fumes.

Key Specifications

• Laser type: CO₂ laser

• Laser power: 80W

• Laser wavelength: 10.6 μm / 10,600 nm

• Maximum standard processing area: 36.02" × 18.03" / 915 × 458 mm

• Maximum processing height in manual mode: 8.66" / 220 mm

• Maximum processing height in automatic mode: 7.08" / 180 mm

• Maximum vector processing speed: 1,200 mm/s

• Maximum bitmap processing speed: 400 mm/s

• Minimum step accuracy: 0.01 mm

• Maximum wood cutting thickness: Up to 20 mm

• Maximum transparent acrylic cutting thickness: Up to 25 mm

• Distance-view camera: 16 MP

• Close-view camera: 5 MP

• Air-assist airflow: Up to 30 L/min

• Maximum air-assist pressure: 200 kPa

• Machine dimensions: Approximately 49.2" × 30.7" × 19.5" / 1250 × 780 × 496 mm

• Machine weight: Approximately 231.5 lb / 105 kg

• Electrical input: 100–240V AC, 50/60 Hz

• Laser safety classification: Class 1 in the standard enclosed configuration

• Optional laser module: 5W infrared engraving module

• Compatible optional accessories: Intelligent Conveyor Feeder, RA3 Rotary Attachment, infrared module, air-filtration equipment and other P3-compatible accessories

Designed for Businesses Ready to Grow

The xTool P3 combines the power of an 80W CO₂ laser with a large work area, built-in vertical capacity, camera-assisted positioning and intelligent automation. It can handle everything from one-of-a-kind personalized gifts to signs, acrylic displays and repeatable production runs.

For makers moving beyond a smaller desktop laser—or businesses that need more speed, capacity and versatility—the P3 provides a professional platform capable of supporting a wide range of profitable products.

Please note: Cutting thickness, engraving appearance and processing speed vary according to material composition, material quality, focus lens, machine settings, maintenance and environmental conditions. Optional accessories and the 5W infrared module are sold separately unless specifically listed as part of the selected bundle.

Choose the Right xTool P3 Bundle

The xTool P3 is available in three bundle configurations, allowing you to select the setup that best matches your projects, workspace and production goals.

xTool P3 Standalone

A Powerful Starting Point for Flat Cutting and Engraving

The P3 Standalone package includes the core equipment needed to begin cutting and engraving standard flat materials.

Included with the P3 Standalone

• xTool P3 80W CO₂ Laser Cutter and Engraver

• xTool IF2 2.0 Inline Fan

• Standard components, accessories and tools supplied with the machine

• CO₂ cylinder, when offered as the current promotional gift

Best For

The Standalone option is a good choice for customers who primarily want to work with flat materials such as:

• Wood and plywood

• MDF

• Clear, colored and mirrored acrylic

• Leather

• Paper and cardstock

• Fabric and felt

• Rubber made for laser engraving

• Coated glass, ceramic, slate and stone

This configuration is ideal for making:

• Layered wood signs

• Acrylic business signs

• Wall décor

• Cutting boards

• Keepsake boxes

• Awards

• Wedding décor

• Ornaments

• Coasters

• Leather patches

• Retail displays

• Furniture inlays and templates

The Standalone package is also appropriate for customers who already have a suitable work surface and do not initially need rotary engraving or the ability to process extra-long material.

Accessories Not Included

The Standalone package does not include the:

• Mobile Work Stand

• Intelligent Conveyor Feeder

• RA3 Rotary Attachment

• AP2 Max Air Purifier

• 5W Infrared Laser Module

These accessories may be purchased separately as your production needs expand.

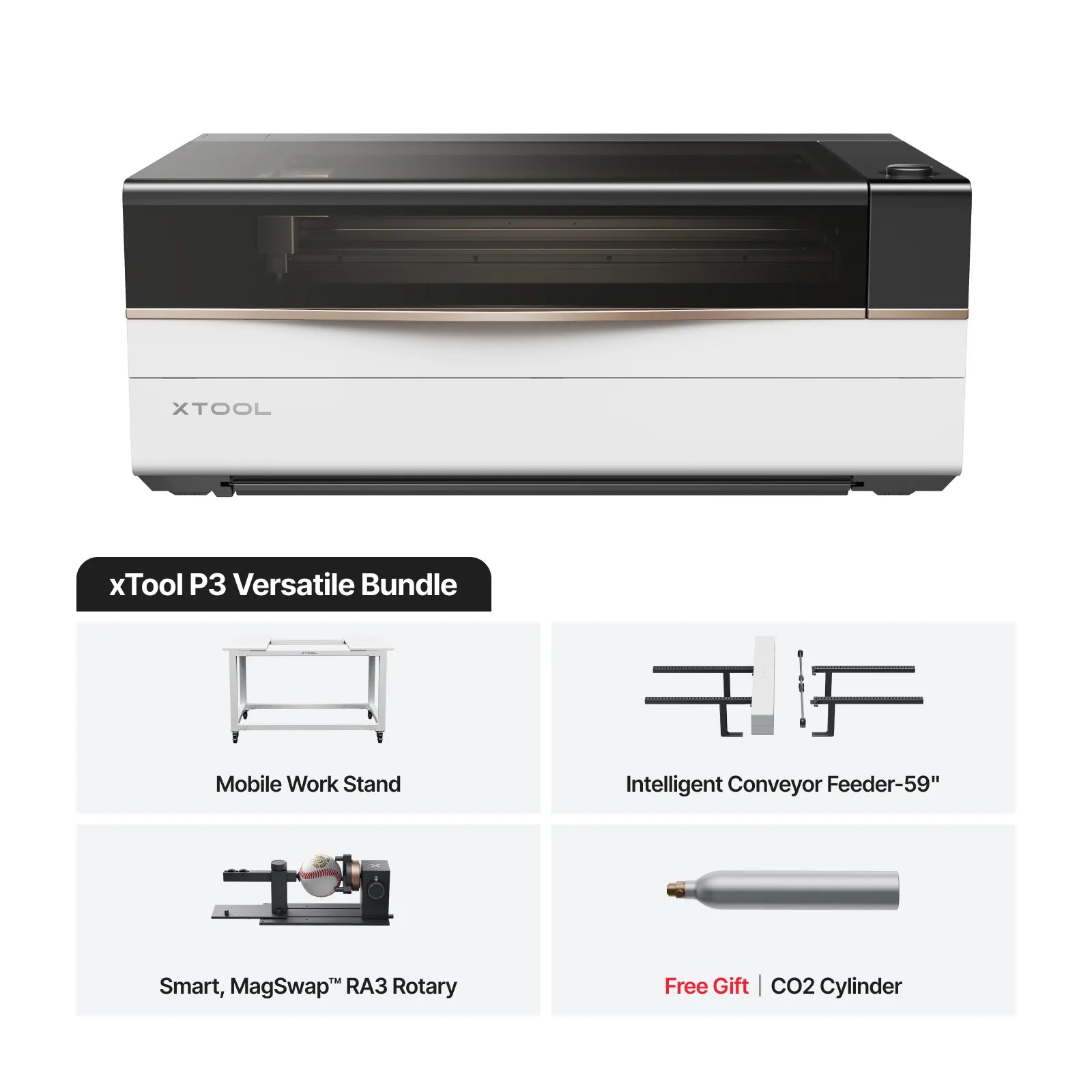

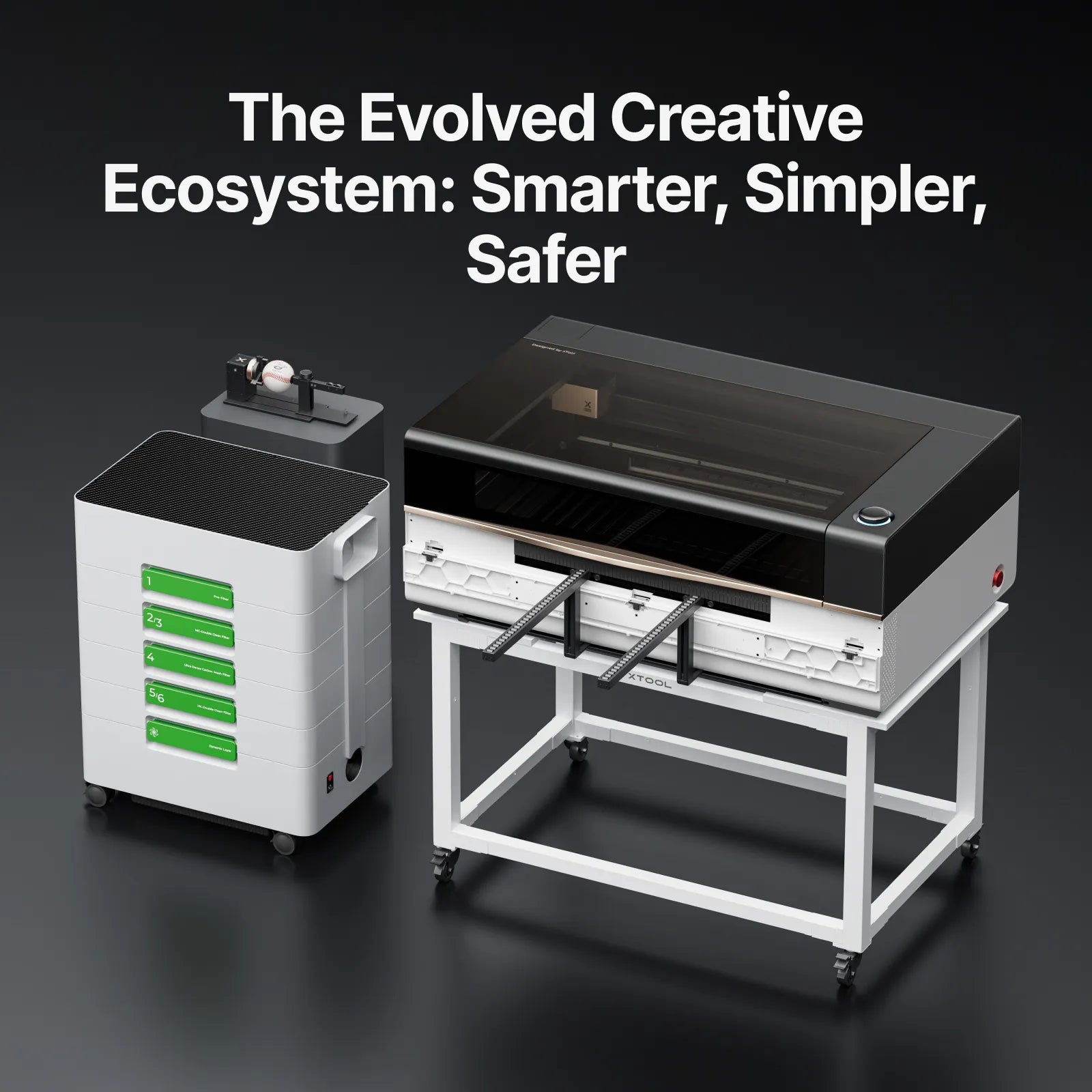

xTool P3 Versatile Bundle

The Best Choice for Maximum Project Variety

The P3 Versatile Bundle expands the machine’s capabilities beyond standard flat cutting and engraving. It adds the equipment needed to engrave cylindrical products, process longer materials and move the P3 more easily within the workspace.

Included with the P3 Versatile Bundle

• xTool P3 80W CO₂ Laser Cutter and Engraver

• xTool IF2 2.0 Inline Fan

• xTool Mobile Work Stand

• xTool P3 Intelligent Conveyor Feeder

• xTool RA3 Rotary Attachment

• Standard components, accessories and tools supplied with the machine

• CO₂ cylinder, when offered as the current promotional gift

Mobile Work Stand

The Mobile Work Stand provides a stable platform specifically suited to the size and weight of the P3. Its casters allow the machine to be repositioned more easily when needed.

The stand is especially helpful for businesses that need to:

• Move the machine for cleaning or maintenance

• Reconfigure a showroom or production space

• Access the rear of the machine

• Make room for conveyor processing

• Maintain a dedicated workstation for the P3

Intelligent Conveyor Feeder

The Intelligent Conveyor Feeder allows the P3 to process materials longer than its standard 36" × 18" work area. Material is advanced through the machine in sections, making it possible to create larger projects without manually repositioning the stock.

The conveyor is useful for making:

• Long business signs

• Oversized wall art

• Furniture panels

• Decorative room dividers

• Large acrylic displays

• Long cabinet components

• Growth charts

• Welcome signs

• Architectural panels

• Repeating production parts

The conveyor’s automated positioning and full-scale preview system help simplify the process of setting up large designs.

Please note that using the conveyor requires opening the machine’s pass-through areas. This changes the laser safety classification and requires appropriate Class 4 laser safety precautions.

RA3 Rotary Attachment

The RA3 Rotary Attachment allows compatible cylindrical, spherical, ring-shaped and irregularly curved objects to be engraved.

Depending on the selected configuration and the dimensions of the product, the RA3 may be used for:

• Tumblers

• Mugs

• Bottles

• Glassware

• Wooden rolling pins

• Flashlights

• Vases

• Round containers

• Ornaments

• Rings

• Bracelets

The P3 and RA3 work together to simplify positioning and engraving on curved surfaces.

Best For

The Versatile Bundle is an excellent choice for:

• Custom gift businesses

• Sign shops

• Wedding and event businesses

• Tumbler and drinkware businesses

• Woodworking shops

• Retail product manufacturers

• Makers who want the widest project selection

• Businesses that expect to expand into larger-format work

For many small businesses, the Versatile Bundle offers the best balance of capability and value because it includes the two accessories that most significantly expand what the P3 can produce: the conveyor feeder and rotary attachment.

Accessories Not Included

The Versatile Bundle does not include the:

• AP2 Max Air Purifier

• 5W Infrared Laser Module

These accessories can be purchased separately.

xTool P3 All-in-One Bundle

The Most Complete P3 Production Package

The P3 All-in-One Bundle includes everything in the Versatile Bundle and adds the AP2 Max Air Purifier. It is designed for customers who want a comprehensive cutting, engraving, rotary, oversized-material and air-filtration setup from the beginning.

Included with the P3 All-in-One Bundle

• xTool P3 80W CO₂ Laser Cutter and Engraver

• xTool IF2 2.0 Inline Fan

• xTool Mobile Work Stand

• xTool P3 Intelligent Conveyor Feeder

• xTool RA3 Rotary Attachment

• xTool SafetyPro AP2 Max Air Purifier

• Standard components, accessories and tools supplied with the machine

• CO₂ cylinder, when offered as the current promotional gift

SafetyPro AP2 Max Air Purifier

Laser cutting and engraving produce smoke, particles, fumes and odors. The AP2 Max is an industrial-grade filtration system designed to capture airborne contaminants created during laser processing.

The purifier is especially valuable when:

• Venting directly outdoors is difficult

• The machine is used in a showroom

• The P3 is located in a shared workspace

• Odor reduction is a priority

• The machine is operated frequently

• Additional filtration is desired before exhausting the air

The AP2 Max helps create a cleaner and more comfortable working environment, but it does not make unsafe materials suitable for laser processing. PVC, vinyl, PTFE and other materials that can release toxic or corrosive fumes must never be placed in the laser.

Filter elements are consumable and will require replacement. Filter life varies according to the materials processed, the amount of smoke produced and how frequently the machine is used.

Best For

The All-in-One Bundle is recommended for:

• Production businesses

• Retail showrooms

• Schools and makerspaces

• Shared studios

• Indoor workshops with limited exterior venting

• Businesses processing smoky or odorous materials

• Customers who want a complete setup without adding major accessories later

It provides the broadest production capability while adding a dedicated filtration system for improved smoke, particle and odor management.

Bundle Comparison

P3 Standalone

Includes:

• P3 80W CO₂ Laser

• IF2 2.0 Inline Fan

Best for:

• Flat materials

• Standard-size projects

• Customers who already have a suitable workstation

• Buyers who prefer to add accessories later

P3 Versatile Bundle

Includes:

• P3 80W CO₂ Laser

• IF2 2.0 Inline Fan

• Mobile Work Stand

• Intelligent Conveyor Feeder

• RA3 Rotary Attachment

Best for:

• Flat and rotary products

• Tumblers and drinkware

• Long signs and oversized projects

• Small businesses wanting broad production capability

P3 All-in-One Bundle

Includes:

• P3 80W CO₂ Laser

• IF2 2.0 Inline Fan

• Mobile Work Stand

• Intelligent Conveyor Feeder

• RA3 Rotary Attachment

• AP2 Max Air Purifier

Best for:

• Complete production setups

• Showrooms and shared workspaces

• Businesses needing air filtration

• Customers who want the most comprehensive package

Which P3 Bundle Should You Choose?

Choose the P3 Standalone when your work will primarily involve flat materials that fit inside the standard work area and you do not currently need rotary or conveyor processing.

Choose the P3 Versatile Bundle when you want to make the widest variety of products. The rotary attachment opens the door to tumblers, bottles and other curved objects, while the conveyor allows you to produce signs and panels longer than the standard machine bed.

Choose the P3 All-in-One Bundle when you want the capabilities of the Versatile Bundle combined with dedicated industrial-grade air purification. This is the strongest option for a production shop, showroom, shared studio or indoor workspace where smoke and odor control are important.

Important Bundle Information

The optional 5W Infrared Laser Module is not currently included in any of the three standard P3 bundles. It is available separately for engraving compatible bare metals and selected plastics.

Bundle contents, promotional gifts and availability may change. Please refer to the product selection shown at the time of purchase for the exact items included with your order.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
