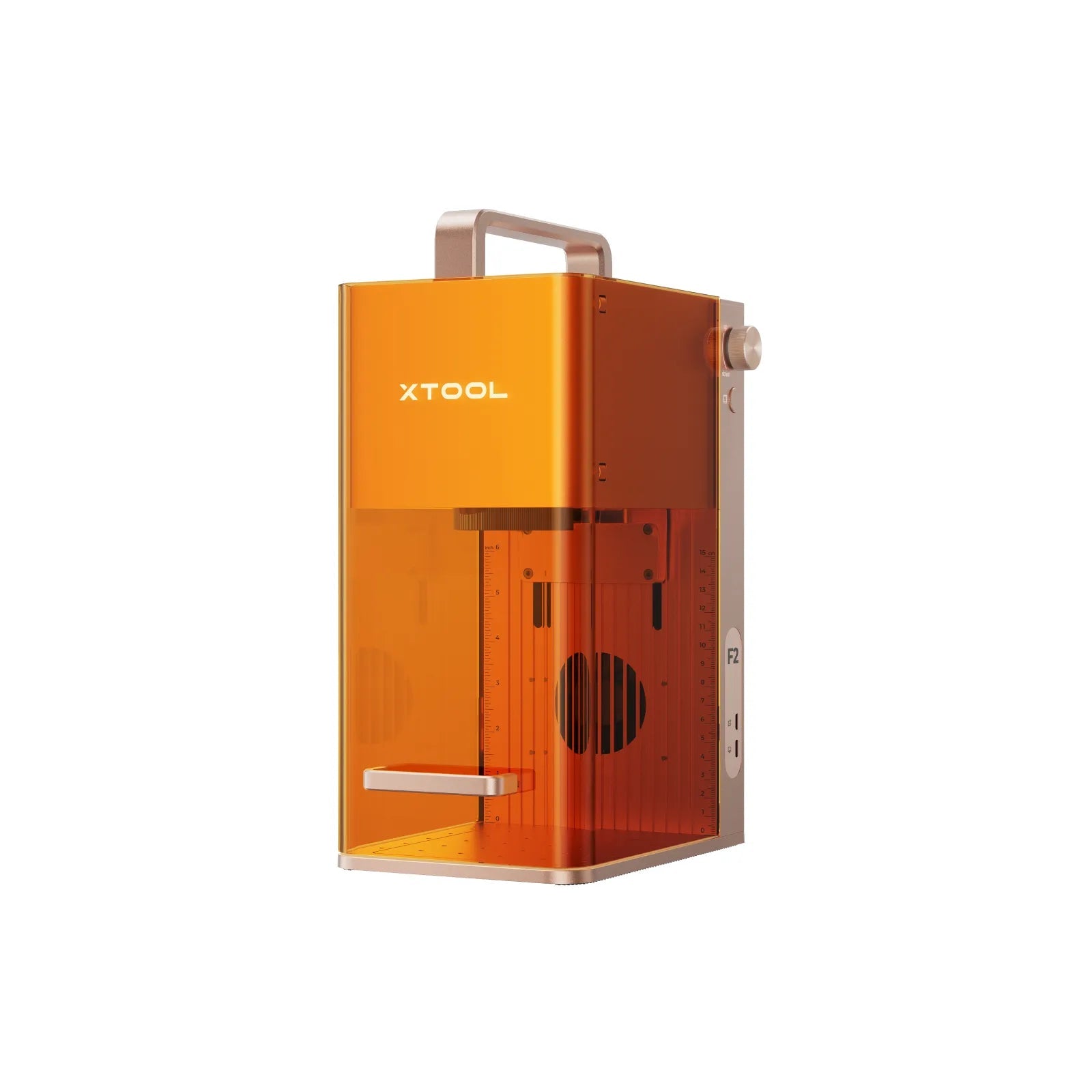

xTool F2 Portable Diode and IR Laser

xTool F2 5W IR + 15W Diode Portable Dual-Laser Engraver

Bring professional-quality laser engraving almost anywhere with the xTool F2, a compact, portable dual-laser engraver designed for personalized products, small-business production, craft shows, retail events, workshops, and creative studios.

Combining a 5W infrared laser for metals and plastics with a powerful 15W blue-light diode laser for wood, leather, acrylic, paper, and other everyday materials, the xTool F2 gives makers and business owners the versatility to produce a broad range of custom products with one portable machine.

With engraving speeds of up to 6,000 mm/s, a built-in 50MP camera, automatic focusing, intelligent batch processing, and a generous maximum processing height of 120 mm, the F2 is built to help you create more products with less setup time.

Two Lasers in One Compact Machine

The xTool F2 features two separate laser sources, allowing you to select the best laser for the material and project.

5W Infrared Laser for Metal and Plastic

The F2’s 5W, 1064 nm infrared laser is designed for detailed marking and engraving on metals and certain plastics.

It is well suited for personalizing:

• Stainless-steel jewelry

• Metal business cards

• Dog tags and identification tags

• Aluminum cards

• Anodized aluminum

• Brass items

• Copper items

• Precious-metal jewelry

• Coated metals

• Watch bands

• Tools

• Electronic accessories

• Selected plastics

The infrared laser can produce crisp text, fine graphics, barcodes, QR codes, serial numbers, logos, photographs, dark markings, and decorative finishes on compatible materials.

On properly prepared and compatible stainless steel, the infrared laser can also produce decorative color-marking effects. Final colors may vary depending on the stainless-steel composition, surface finish, laser settings, and environmental conditions.

15W Diode Laser for Wood and Everyday Materials

The 15W, 445 nm blue-light diode laser expands the F2 beyond metal marking, allowing it to engrave and cut many common craft and production materials.

Use the diode laser for projects made from:

• Wood

• Leather

• Opaque acrylic

• Rubber

• Paper

• Cardboard

• Fabric

• Cork

• Slate

• Painted or coated surfaces

• Selected synthetic materials

The increased 15W diode power makes the F2 suitable for creating signs, ornaments, leather goods, engraved gift items, product tags, packaging, accessories, promotional products, and other personalized merchandise.

Material suitability and cutting performance will vary according to material type, density, thickness, color, surface coating, focus, and processing settings.

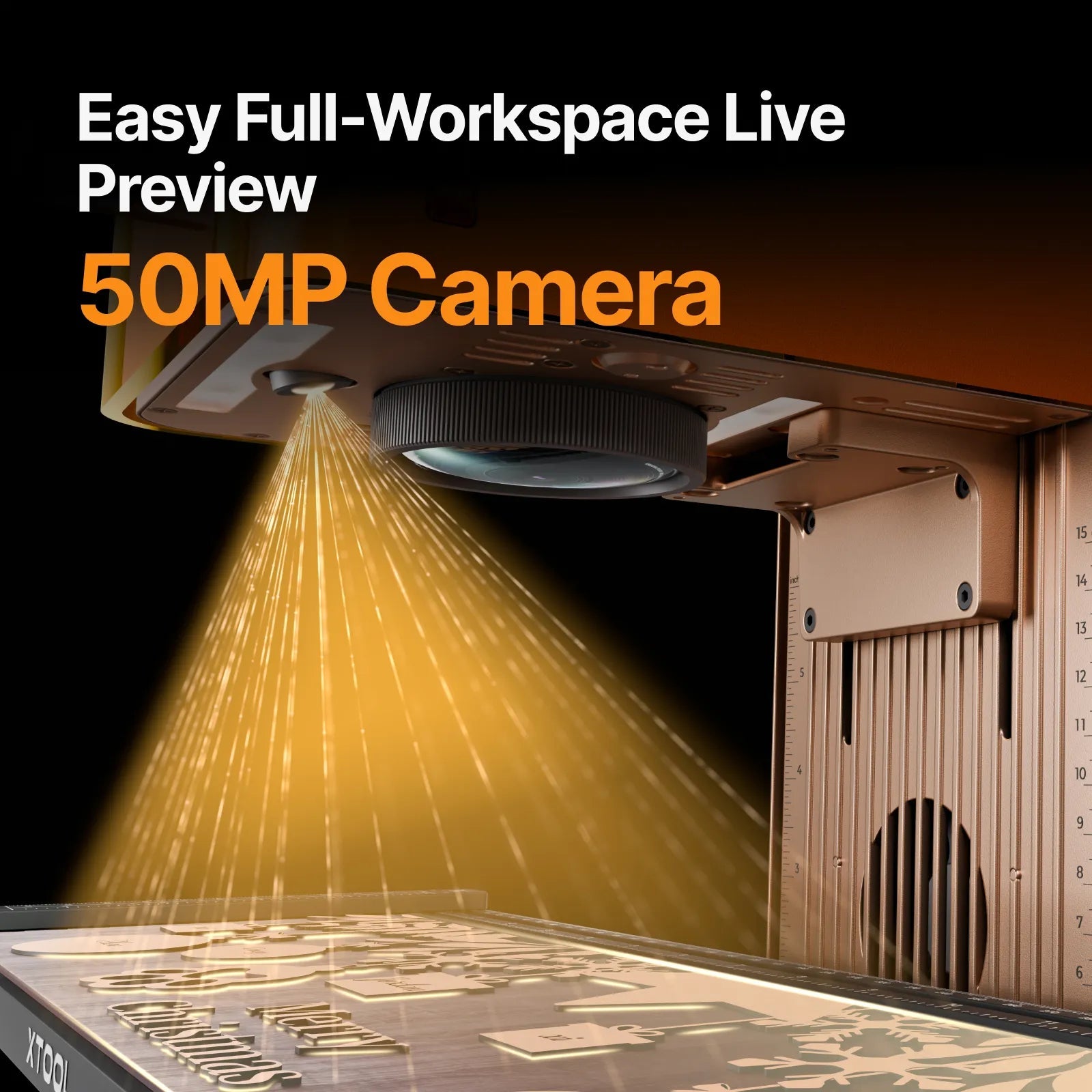

Built-In 50MP Camera for Accurate Placement

The xTool F2 includes a built-in 50-megapixel camera that captures the entire working area and displays the material inside the machine.

Instead of relying only on a framing outline, you can position artwork directly over the photographed material in xTool Studio. This makes it easier to align names, logos, photographs, and graphics on small or irregularly shaped products.

The camera-assisted positioning system can provide alignment accuracy of up to approximately 0.1 mm on small objects, helping reduce positioning errors and wasted blanks.

The camera image is refreshed when requested. It is not a continuous live-video feed, so the workspace image should be captured again after moving or replacing a product.

Fast Engraving at Up to 6,000 mm/s

With a maximum processing speed of 6,000 mm/s, the xTool F2 is designed for quick personalization and efficient small-item production.

Its galvo-based laser system moves the laser beam electronically rather than moving the entire laser head across a gantry. This allows the F2 to complete small engravings rapidly while maintaining sharp detail.

The combination of speed, portability, and camera-assisted placement makes the F2 particularly useful for:

• Craft fairs

• Trade shows

• Farmers markets

• Pop-up stores

• Sporting events

• Corporate events

• Retail personalization counters

• Mobile engraving services

• Small-batch production

• On-demand customer orders

Actual production speed will depend on the selected laser, artwork size, material, resolution, line interval, engraving depth, number of passes, and other processing settings.

Automatic Focus

The xTool F2 supports automatic focusing, reducing the time required to prepare each job.

Once the material is placed inside the machine, the F2 can determine the appropriate working height and position the laser for processing. This is especially helpful when switching between products of different thicknesses during demonstrations, markets, or production runs.

Manual focus adjustment is also available when greater control is required.

Smart Batch Processing

For businesses producing multiple personalized products, the F2 supports camera-assisted batch processing.

Compatible items can be arranged throughout the work area, photographed by the camera, and recognized by the software. The design can then be applied to multiple products in a single production setup.

Batch recognition works best when the objects:

• Have a clear, visible outline

• Contrast with the background

• Are consistent in size and shape

• Have relatively flat surfaces

• Are not highly reflective or transparent

Reflective metals, clear materials, black acrylic, and objects with poorly defined edges may require manual placement rather than automatic recognition.

Curved-Surface Engraving

The F2 supports curved-surface engraving through xTool Studio.

The software can compensate for changes in surface height, helping maintain better focus and engraving consistency across gently curved objects. This is useful for products such as flasks, bracelets, curved metal accessories, and other items that are not completely flat.

For cylindrical objects, tumblers, rings, mugs, and similar products, an optional xTool rotary attachment may be required.

Detailed Engraving and Relief Effects

The xTool F2 is capable of producing highly detailed designs, including:

• Fine text

• Logos

• Photographs

• Fingerprints

• Handwriting

• Line art

• QR codes

• Barcodes

• Serial numbers

• Decorative patterns

• Layered engraving

• Shallow relief-style effects

The infrared laser can remove material through repeated passes to create recessed designs and dimensional engraving effects on compatible metals. Because the F2 uses a 5W infrared laser, deeper engraving and relief work may require additional processing time compared with higher-powered fiber or MOPA laser systems.

The F2 is intended for metal marking and engraving. It is not designed to cut through metal.

Compact and Portable

Measuring approximately 175 mm wide × 237 mm deep × 334 mm high, the xTool F2 takes up very little workspace compared with traditional gantry-style laser machines.

Its compact footprint makes it easy to use on:

• Retail counters

• Workbenches

• Display tables

• Market booths

• Mobile workstations

• Small studio tables

• Classroom or demonstration stations

The portable design allows businesses to bring customization directly to the customer rather than producing every order off-site.

Standard and Expandable Working Area

The standard internal working area is:

115 mm × 115 mm
Approximately 4.53 × 4.53 inches

This area is ideal for jewelry, tags, keychains, cards, coasters, patches, small signs, accessories, and other compact products.

With the optional xTool Slide Extension, the processing area can be expanded to:

115 mm × 400 mm
Approximately 4.53 × 15.75 inches

The slide extension is useful for:

• Longer products

• Repeated production

• Batch engraving

• Multiple items arranged in a row

• Signs and nameplates

• Extended graphics

Up to 120 mm Processing Height

The xTool F2 supports materials and objects up to 120 mm high, depending on the processing setup and accessories being used.

This additional clearance allows the F2 to engrave thicker objects and finished products that would not fit inside many compact enclosed engravers.

Available clearance may be reduced when using a rotary attachment, support fixture, or other accessory.

Rotary Engraving Capability

The xTool F2 is compatible with optional xTool rotary accessories, including the RA2 Pro and RA3, allowing you to engrave cylindrical and round objects.

Depending on the rotary configuration, compatible products may include:

• Tumblers

• Cups

• Mugs

• Bottles

• Rings

• Bracelets

• Cylindrical containers

• Pens

• Round ornaments

The machine can accommodate rotary items up to approximately 120 mm in diameter, although the usable size may vary depending on the rotary attachment, object shape, and setup.

Dual-Laser Projects

Both laser sources can be used within the same project.

Different artwork layers can be assigned to the infrared laser or diode laser in xTool Studio. This allows users to create multi-process projects without switching machines.

For example, a project could use:

• The diode laser to engrave or cut a wooden component

• The infrared laser to mark an attached metal plate

• The diode laser to remove a coating

• The infrared laser to create a detailed mark on exposed metal

This dual-laser workflow provides greater creative flexibility for mixed-material products.

Software and Connectivity

The xTool F2 works with xTool Studio, xTool’s design and machine-control software.

Connection options include:

• Wi-Fi

• USB

• IP network connection

Within the software, users can import artwork, position designs using the camera image, assign laser settings, control focus, prepare batch jobs, and operate compatible accessories.

The F2 can also be paired with an optional xTool touchscreen controller for computer-free operation, file storage, job selection, focusing, and production control.

An optional foot pedal or desktop switch can be added for hands-free job starting, pausing, or repeating, making it useful for repetitive production environments.

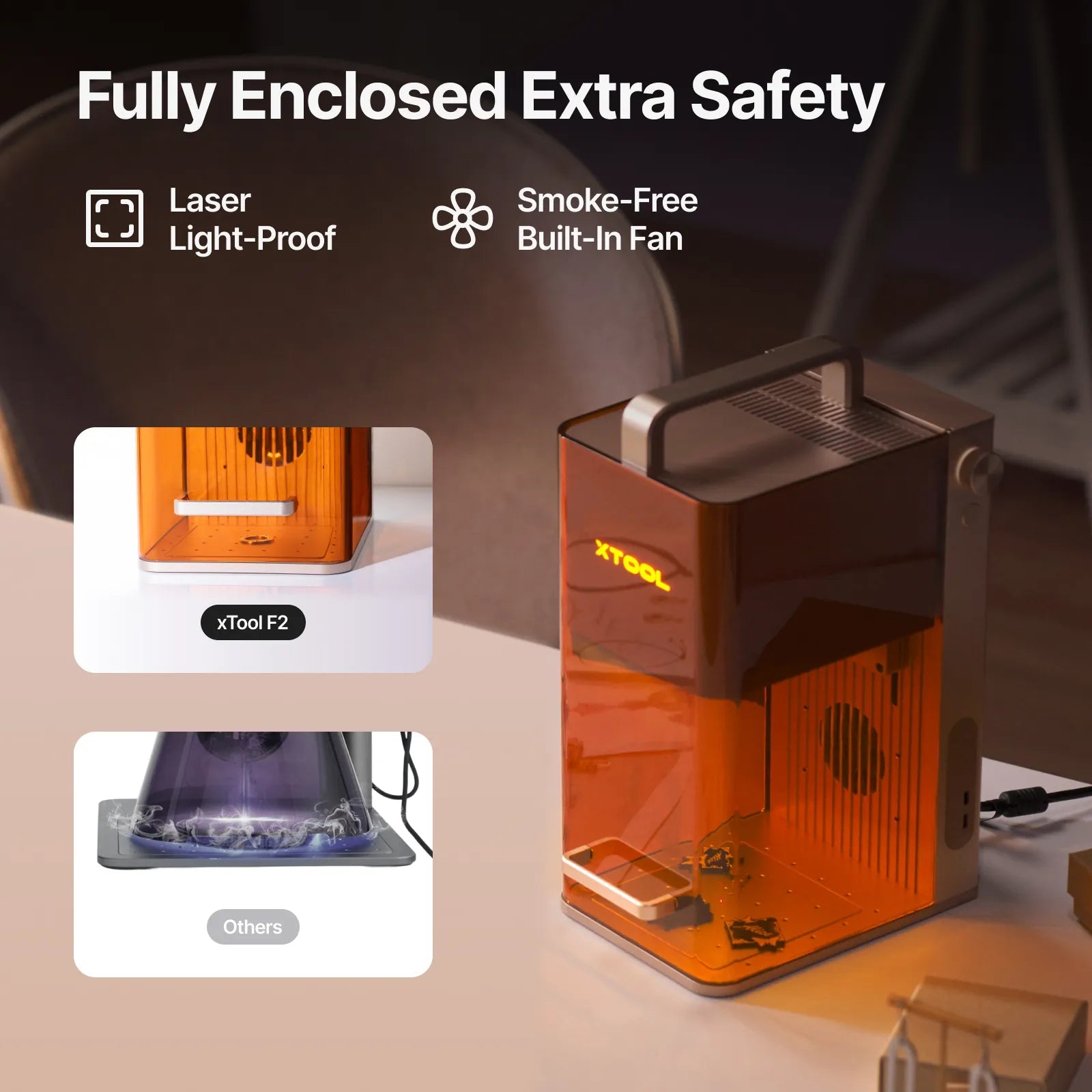

Safety Features

The xTool F2 includes several integrated safety features, including:

• Protective enclosure

• Emergency-stop button

• Access-control key

• Enclosure detection

• Flame-monitoring features

• Exhaust connection

• Status indicators

The xTool F2 is classified as a Class 4 laser product because it is capable of operating while the protective enclosure is open.

The protective enclosure should remain closed whenever possible. Appropriate laser safety glasses rated for both 445 nmand 1064 nm wavelengths should be worn whenever exposure to the laser beam is possible.

Safety glasses are not included with the standard machine and must be purchased separately.

Proper ventilation, smoke extraction, or filtration is required when laser processing. Never leave an operating laser unattended, and always verify that a material is safe to engrave or cut before processing it.

Ideal for Small Businesses and Mobile Personalization

The xTool F2 is a strong choice for entrepreneurs who want to offer fast, on-demand personalization without transporting a large production machine.

Potential products include:

• Personalized jewelry

• Engraved metal cards

• Pet tags

• Identification plates

• Keychains

• Leather patches

• Wallets

• Wooden ornaments

• Coasters

• Cutting boards

• Promotional products

• Corporate gifts

• Wedding favors

• Event keepsakes

• Custom tools

• Branded merchandise

• Product labels

• QR-code tags

• Serial-number plates

• Photographic engravings

Its dual-laser system gives businesses the ability to work with both metal and nonmetal products while maintaining a compact, portable setup.

xTool F2 Technical Specifications

Product Name: xTool F2
Model: MXF-K005-002
Laser Configuration: Dual laser
Infrared Laser Power: 5W average output
Infrared Laser Wavelength: 1064 nm ± 5 nm
Blue-Light Diode Laser Power: 15W average output
Diode Laser Wavelength: 445 nm ± 15 nm
Maximum Processing Speed: 6,000 mm/s
Standard Working Area: 115 × 115 mm
Working Area with Slide Extension: 115 × 400 mm
Maximum Processing Height: 120 mm
Camera: Built-in 50MP camera
Camera Alignment Accuracy: Up to approximately 0.1 mm on small objects
Focusing: Automatic and manual focus
Connection Methods: Wi-Fi, USB, and IP
Machine Dimensions: 175 × 237 × 334 mm
Approximate Dimensions in Inches: 6.89 × 9.33 × 13.15 inches
Power Input: 25V DC, 6A
Rated Input Power: 150W
Laser Classification: Class 4
Compatible Rotary Attachments: xTool RA2 Pro and RA3
Maximum Rotary Object Diameter: Up to approximately 120 mm, depending on setup
Compatible Software: xTool Studio

Available Accessories

Optional accessories may include:

• xTool Slide Extension

• xTool RA2 Pro Rotary Attachment

• xTool RA3 Rotary Attachment

• Desktop Air Purifier

• Exhaust system

• Touchscreen Controller

• Foot Pedal

• Desktop Switch

• Additional fixtures and positioning accessories

Accessories, package contents, and bundle configurations may vary according to the package selected.

Why Choose the xTool F2?

The xTool F2 combines the material flexibility of two laser sources with the speed and portability needed for modern personalization businesses.

Choose the F2 when you need:

• One compact machine for metals and nonmetals

• A stronger 15W diode laser for everyday materials

• A 5W infrared laser for metal and plastic marking

• Fast engraving speeds up to 6,000 mm/s

• Camera-assisted artwork placement

• Automatic focusing

• Batch-production capabilities

• Curved-surface engraving

• Optional rotary engraving

• An expandable working area

• A portable system for events and mobile personalization

From engraved jewelry and metal business cards to leather patches, wooden gifts, product tags, and event merchandise, the xTool F2 provides a flexible platform for turning custom ideas into professional finished products.

Choose Your xTool F2 Bundle

The xTool F2 is available in three bundle configurations. Every option includes the same powerful xTool F2 dual-laser engraver with a 5W infrared laser and a 15W diode laser. The difference between the bundles is the additional equipment included for expanded engraving, rotary projects, and smoke filtration.

xTool F2 Standalone

The F2 Standalone package includes the xTool F2 laser engraver and the standard components required to set up and operate the machine.

Included:

• 1 × xTool F2 Dual-Laser Engraver

• 5W 1064 nm infrared laser

• 15W 445 nm diode laser

• Built-in 50MP camera

• Built-in protective enclosure

• Exhaust hose and standard exhaust components

• Power adapter and power cable

• USB connection cable

• Access-control key

• Standard setup tools and accessories

• Material sample pack

• User documentation

Best for:

The Standalone package is a good choice for customers who primarily plan to engrave smaller, flat products within the F2’s standard 115 × 115 mm working area.

Typical projects include:

• Jewelry

• Metal business cards

• Pet tags

• Keychains

• Small leather patches

• Coasters

• Wooden ornaments

• Identification plates

• Small promotional products

The Standalone package does not include the Slide Extension, RA3 Rotary Attachment, or Desktop Air Purifier.

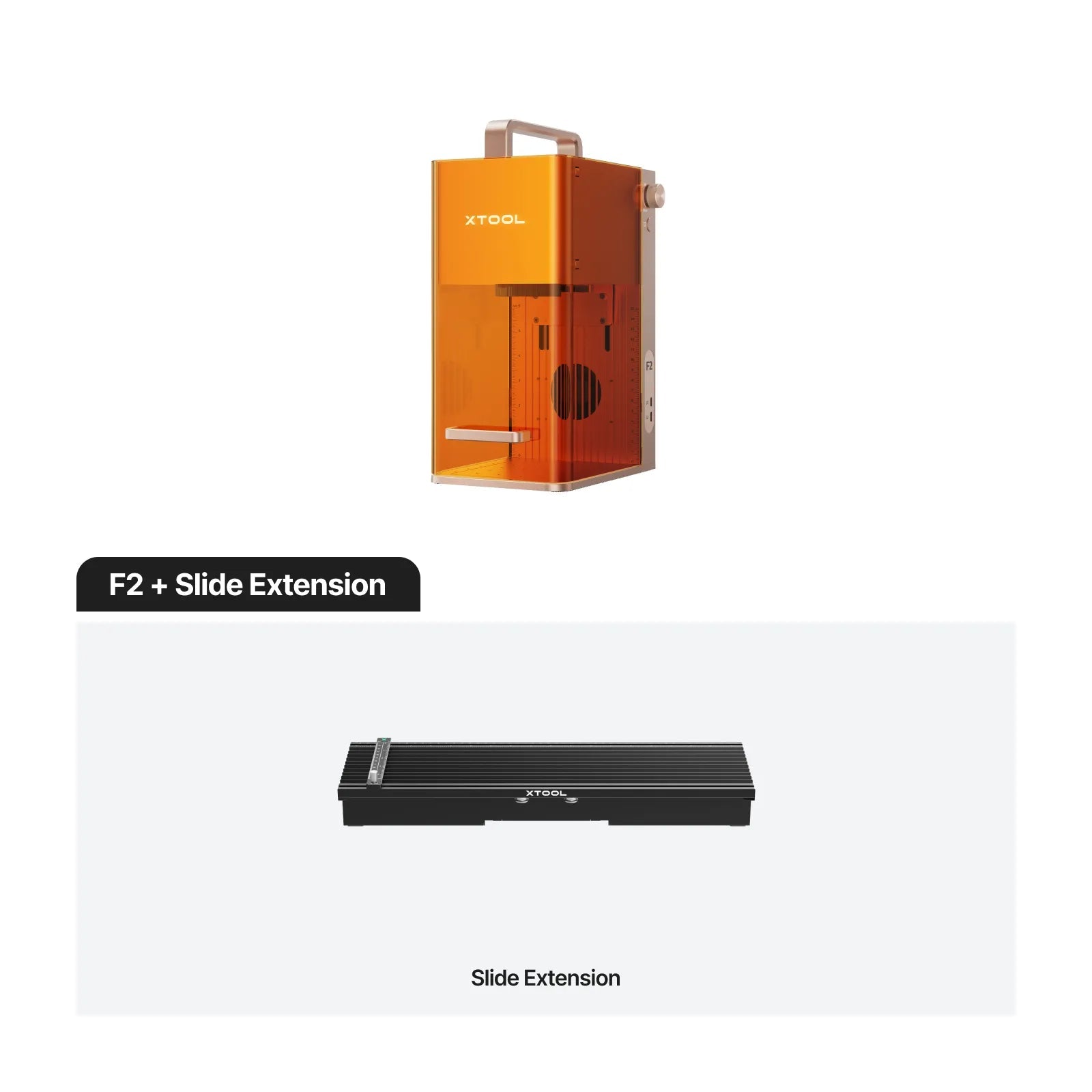

xTool F2 + Slide Extension

The F2 + Slide Extension package includes everything in the F2 Standalone package, plus the xTool Slide Extension.

Included:

• 1 × xTool F2 Dual-Laser Engraver

• 1 × xTool Slide Extension for F2/F1

• All standard F2 power, exhaust, connection, setup, and sample accessories

What the Slide Extension Adds

The Slide Extension expands the F2’s processing area from:

115 × 115 mm
Approximately 4.5 × 4.5 inches

to:

115 × 400 mm
Approximately 4.5 × 15.7 inches

This makes it possible to engrave longer products or arrange several smaller products for sequential batch processing.

The Slide Extension is preassembled and connects directly to the F2. It also includes positioning clamps to help hold materials securely during processing.

Best for:

This package is ideal for customers who want to produce:

• Longer signs and nameplates

• Multiple business cards

• Rows of jewelry pieces

• Multiple tags or keychains

• Longer leather patches

• Pens and writing instruments

• Batch orders

• Repeated products

• Longer artwork and graphics

The camera can capture a panoramic image of the expanded working area, allowing the user to position designs across the extended workspace in xTool Studio.

The F2 + Slide Extension package does not include the RA3 Rotary Attachment or Desktop Air Purifier.

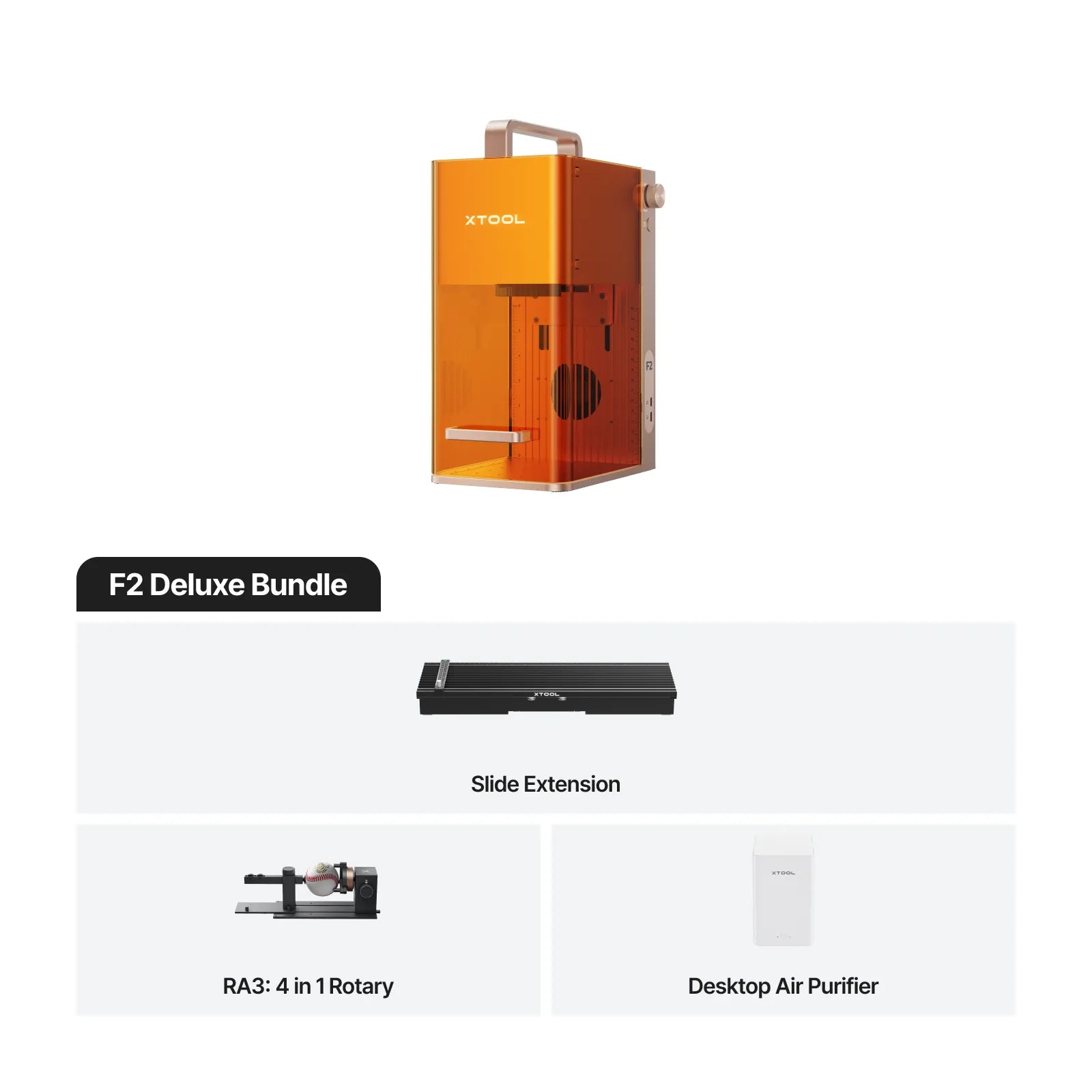

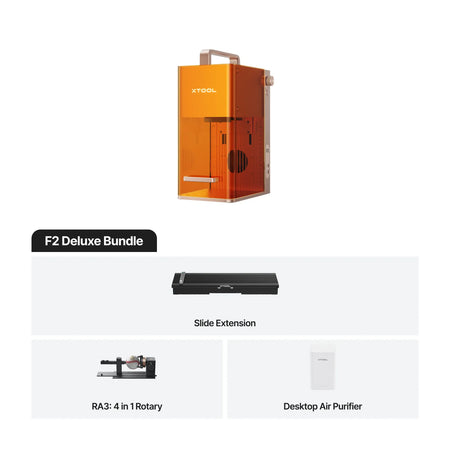

xTool F2 Deluxe Bundle

The F2 Deluxe Bundle is the most complete F2 package. It includes the F2 engraver, Slide Extension, RA3 Rotary Attachment, and Desktop Air Purifier.

Included:

• 1 × xTool F2 Dual-Laser Engraver

• 1 × xTool Slide Extension for F2/F1

• 1 × xTool RA3 Rotary Attachment

• 1 × xTool Desktop Air Purifier for F2/F1

• All standard F2 power, exhaust, connection, setup, and sample accessories

This bundle gives customers the ability to engrave flat products, longer materials, batches of products, cylindrical objects, rings, and other curved items while also providing a dedicated smoke-filtration solution.

xTool Slide Extension

The included Slide Extension increases the working area to 115 × 400 mm, making it useful for longer products and batch production.

Use it for:

• Multiple jewelry pieces

• Business cards

• Product tags

• Long leather patches

• Longer signs

• Rows of keychains

• Batch personalization

• Repeated customer orders

xTool RA3 Rotary Attachment

The included RA3 Rotary Attachment allows the F2 to engrave cylindrical, round, and ring-shaped products that cannot be processed properly on a flat work surface.

Depending on the selected RA3 configuration and the shape of the product, it can be used for items such as:

• Tumblers

• Cups

• Mugs

• Bottles

• Rings

• Bracelets

• Pens

• Cylindrical containers

• Round ornaments

• Curved accessories

The RA3 provides several holding methods to accommodate products with different shapes, diameters, and surface profiles.

The F2 can accommodate rotary objects up to approximately 120 mm in diameter, although the available capacity depends on the object, rotary configuration, and engraving position.

xTool Desktop Air Purifier

The included Desktop Air Purifier connects to the F2’s exhaust system and helps capture smoke, particles, and odors produced during engraving and cutting.

The purifier is especially useful when the machine is used:

• Inside a retail store

• At an indoor craft fair

• In a showroom

• In a home studio

• In an office

• At a personalization counter

• In a space where exterior venting is difficult

The purifier uses a multilayer filtration system to capture larger particles, fine particles, smoke, and odors.

Filters are consumable items and must be inspected and replaced periodically. Filter life varies according to the materials being processed, engraving frequency, smoke volume, and laser settings.

Best for:

The Deluxe Bundle is the best choice for customers who want the broadest range of capabilities from the beginning.

It is particularly well suited for:

• Small businesses

• Craft-show vendors

• Mobile personalization services

• Retail stores

• Jewelry businesses

• Tumbler and drinkware businesses

• Promotional-product companies

• Event personalization

• High-variety custom-product businesses

• Customers using the F2 indoors

xTool F2 Bundle Comparison

Which xTool F2 Bundle Should You Choose?

Choose the F2 Standalone when you primarily plan to engrave small, flat products and already have an appropriate ventilation or filtration system.

Choose the F2 + Slide Extension when you want a larger working area for longer products or more efficient batch production but do not currently need rotary engraving or an air purifier.

Choose the F2 Deluxe Bundle when you want the most versatile, production-ready package. It provides expanded flat engraving, rotary engraving for cylindrical products, and dedicated air filtration in one complete system.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
